Trinity OSD Kit – Sold Out – Feb. shipping


Back orders are being fulfilled, we are temporarily out of stock with more transformers coming shortly. The payment button will be active once we have re-stocked.

After many inquiries about an Overdrive Special Design kit, we re-designed our OSD into a builder friendly package that meets out stringent support requirements.

Since completing the Trinity OSD amplifier build I have had the opportunity to play a variety of guitars through it as well as coupling it with various speaker and cabinet combinations and my original impressions are well confirmed. It has proven to be very versatile with an excellent response and feel and has a wide operating range which is suitable for styles spanning from Jazz to Country, Blues and Rock. My congratulations on a fine product.

Roland V. Ottawa, ON, Canada (Trinity OSD Kit)

The Trinity Amps OSD is modelled after the 100W Dumble ODS #124 with just a few less frills. It boasts a nominal 22W / 6V6 or 33W / 6L6 output stage in a compact chassis format of only 17 in W X 2-1/2” in H X 8-1/2 in D . It has one foot-switched channel – Clean and Overdrive. The amp uses 6V6  output tubes in fixed bias mode with an option to run 6L6 power tubes. Since most on-stage set-ups are miked, 100 watts power is almost never required and 22 watts is both sufficient and surprisingly loud even for medium gigs, especially in this design. This lower wattage helps keep volume levels manageable and makes it very useful in a studio.
The 6L6 power tube option produces about 38 watts RMS power into 8 ohms.

The preamp has three 12AX7 tubes which are used for the Clean channel, Overdrive channel and the Phase Inverter. On the back of the amp there is a control to configure Overdrive channel Trim. The Overdrive channel and Pre-Amp Boost (PAB) are activated with a footswitch connected to the back of the amp. There is also a passive effects loop, like in the originals. This is very effective if, for example, you want to inject some reverb. We have used a Holy Grail Reverb pedal here and it works very well. There is an option for a buffered effects loop.

The “spanky” clean preamp has a percussive nature is extremely inspirational. This preamp stays nice and clean and allows you to crank the power amp to achieve a highly percussive tone that taps into the compression and sustain of the power amp tubes.

The magic of the OSD comes from the Overdrive channel sound. The Overdrive channel provides a very smooth, sweet sustaining distorted tone. Activating the Overdrive circuit adds two additional gain stages and the result is an Overdrive that ranges from clean and harmonically rich to smooth and thick with ample saturation.

The amp has one input going straight to the first tube stage. No FET input.
The first tube triode is followed by a passive tone stack with controls for Treble, Middle, Bass and Volume. There are two mini toggle switches on the front panel for Mid Boost and Rock/Jazz and the Volume control can be pulled out for a brighter sound.
The Treble, Mid, Bass tone stack is followed by another triode stage. The resulting signal is either fed straight into the power amplifier (Clean channel) or into the Overdrive channel circuitry.
The output section uses a standard long tail pair phase inverter utilizing negative feedback. Since there is negative feedback, the phase inverter section of the amp also features a Presence control to add sparkle and clarity to your tone. There is a Master Volume control prior to the phase inverter which is very effective at setting the overall volume of the amp.
The power supply uses a diode full wave rectifier and is unique in that it employs a lot of filtering in the power supply (100uf / 50uf X4) . The large filter capacitors help keep the tone tight and focused  especially in Overdrive mode!
On the back of the amp, there are two speaker output jacks, a 4-8-16 ohms speaker impedance selector, passive effects loop, OD trim control and  Mains and High Voltage fuses.

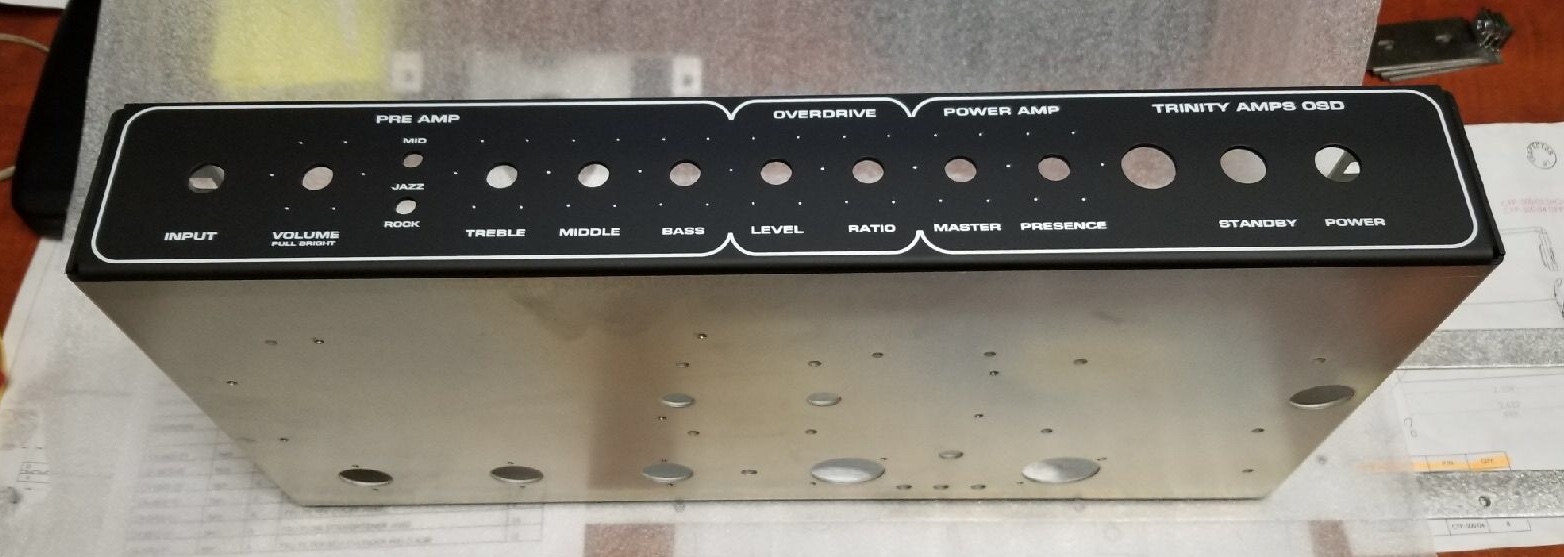

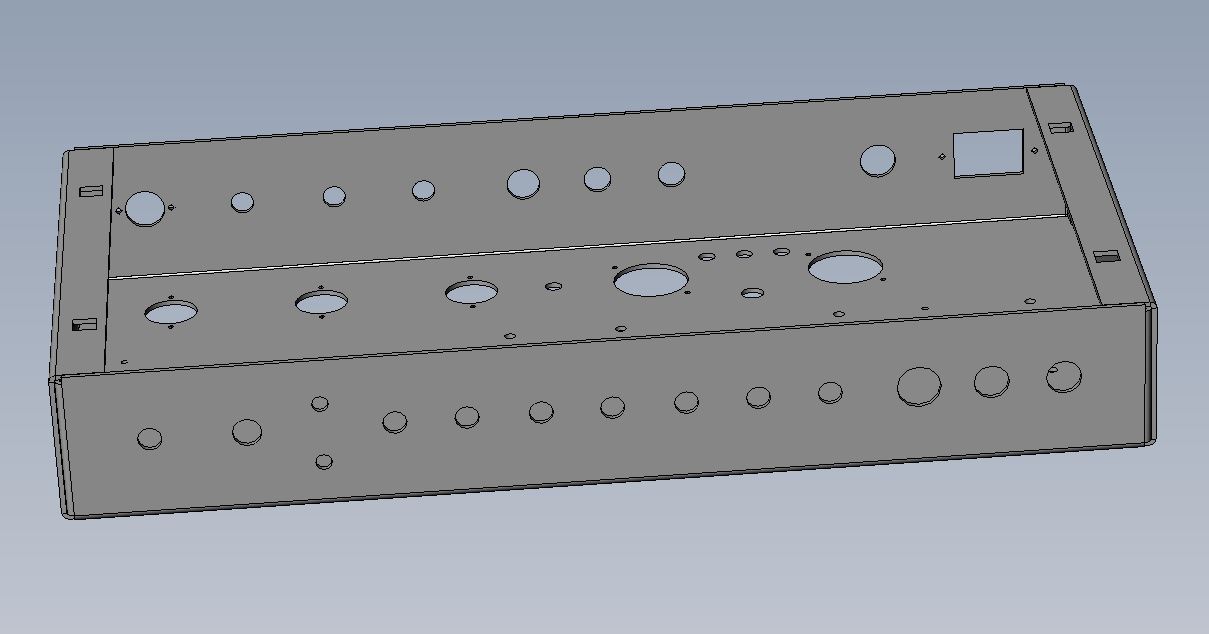

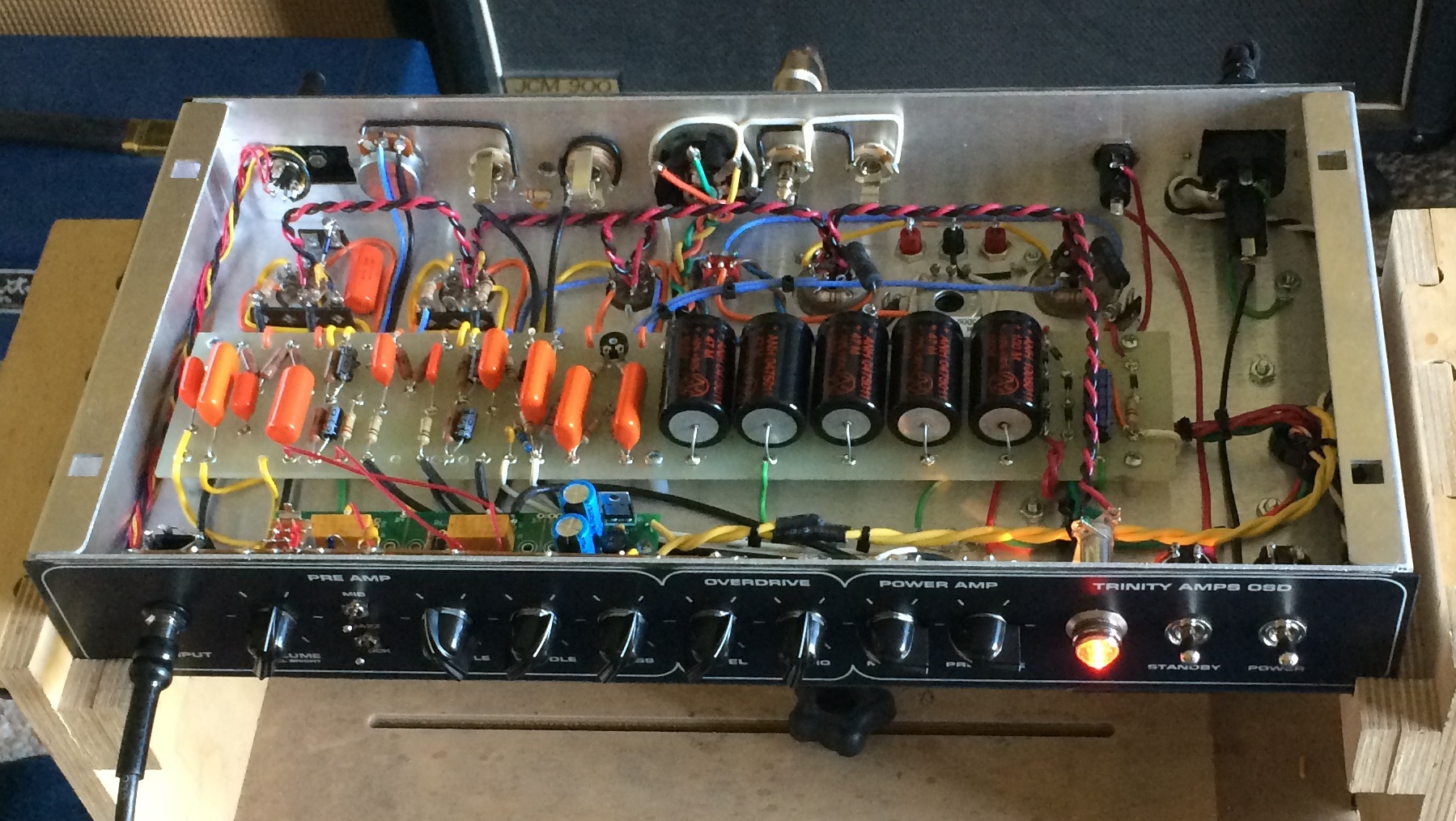

OSD Build Pictures

For the Overdrive channel to attain its very smooth, sweet sustaining distorted tone, it is carefully tuned in terms of gain and frequency response.

The Overdrive channel and Pre-Amp Boost (PAB) are activated with a two-button footswitch. Both the channel switching and PAB switching is done by two relays inside the amp. The PAB accentuates midrange frequencies and attenuates low frequencies, making it great for cutting through during a solo. Engaged, you will also notice an increase in gain and distortion characteristics. This is useful for pushing the power section, lead boost and getting a bit of extra dirt from the amp.

The Overdrive channel consists of two cascaded triodes being fed from the clean channel signal. Gain is attenuated before and after each of the two triode stages in the Overdrive channel. This limiting of gain keeps the amp smooth and prevents over the top harsh distortion tones. The Overdrive channel features two front panel controls – Rati,  an OD master volume control  and Level which adjusts the amount of gain and  distortion in the overdrive mode. On the back of the amp there is a Trim control that controls the amount of signal sent into the first stage of the Overdrive circuit.

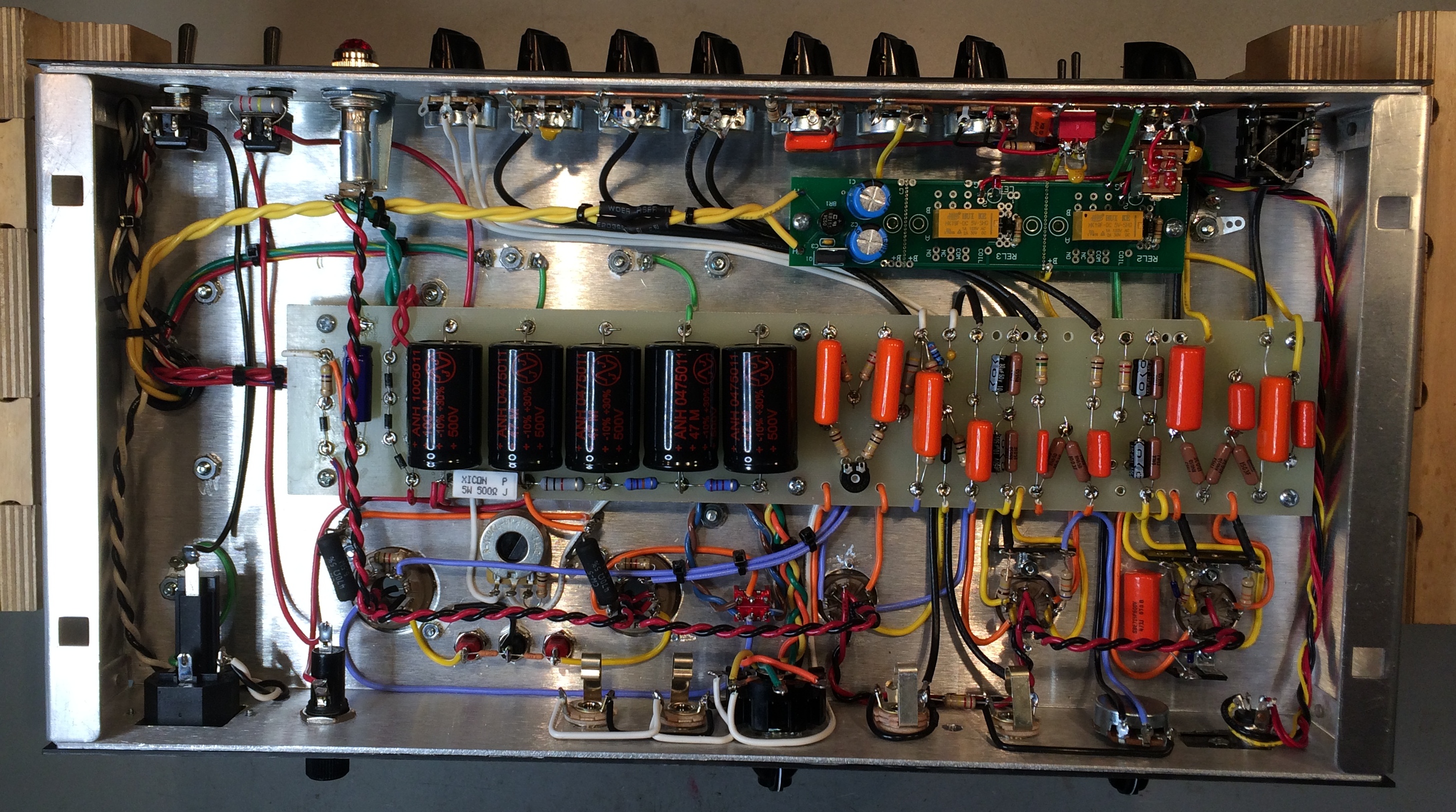

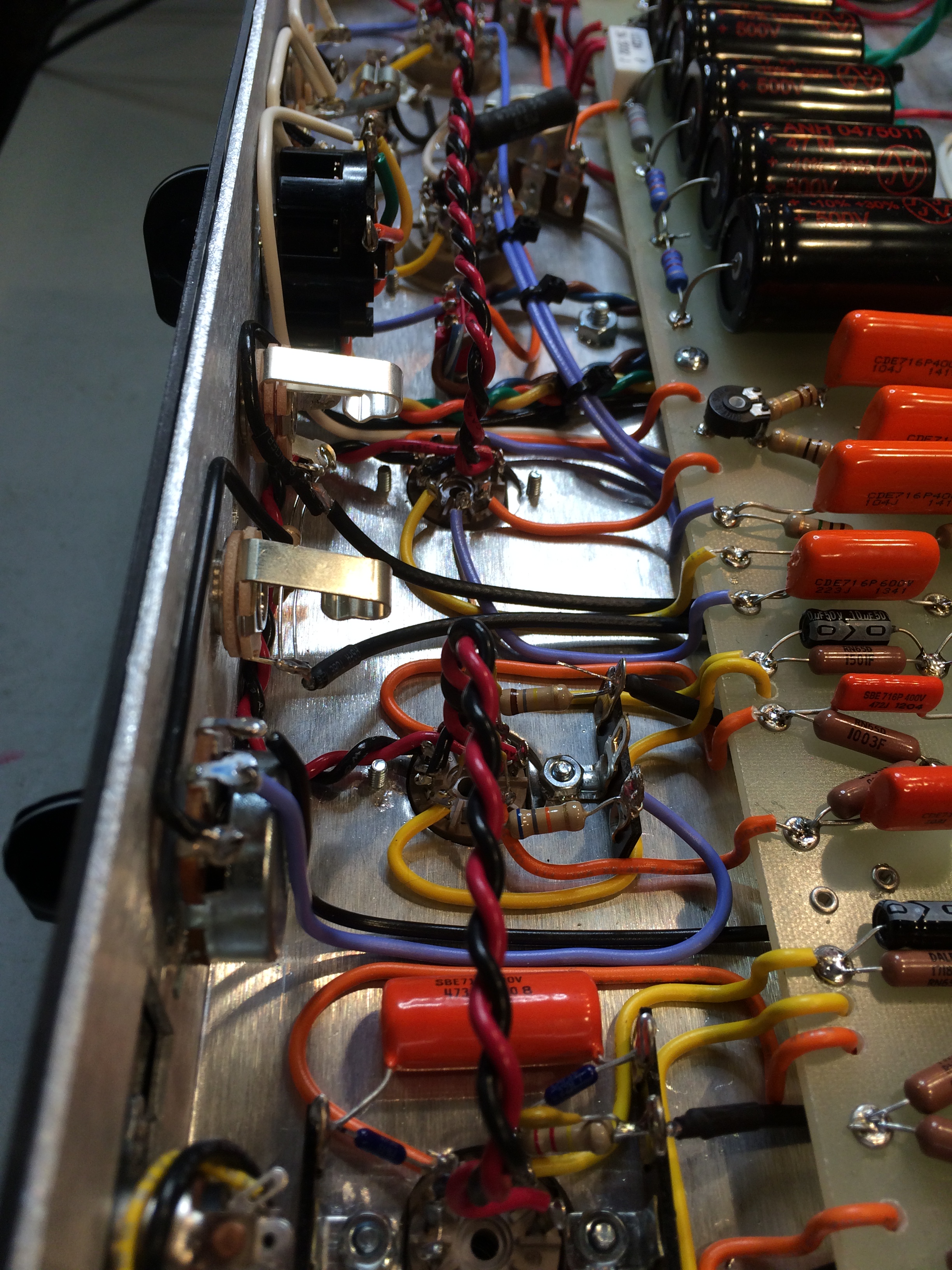

The OSD design is well thought out from a builders perspective and uses a single eyelet board and a single relay PCB. Parts selection, lead dress, voltages and tube selection are critical in getting a great sounding amp.

Order Below!


Orange Drop 716 series caps; 1 Watt CARBON FILM resistors; 1% 1W Vishay Metal film where required for low noise and precision, CLIFF and SWITCHCRAFT jacks; ALPHA pots; JJ filter caps; BELTON Micalex tube sockets, Tube retainers & shields; 1/8″ thick GP03 Eyelet Board with KEYSTONE Eyelets; CARLING switches; 6A impedance switch; GENERAL CABLE 22 gauge solid core coloured hook-up wire and pre-twisted heater wire; BELDEN Co-Ax cable; All Mounting hardware, spacers and nuts; Front Black  faceplate with White reverse engraved lettering; Silk-Screened rear chassis; Pre-Cut 0.09″ Aircraft Aluminum Chassis with tapped holes for tube mounting screws; Two-button foot-switch with LED indicators and 15′ DIN connected cable; Detailed 100+ page Builders with large 11″ X 17″ sized schematic and colour layout; Real SUPPORT
Kit Includes Custom  Heyboer Transformer set – PT & OT (over spec’d) Made in USA to our critical specifications.
Supported AC Primary voltages 110, 120, 220, 230, 240 50/60 Hz

Tube Recommendation: NOS RCA 12AX7 for V1 (Clean channel); Mullard reissue 12AX7 for V2 (Overdrive channel); Tung Sol 12AX7 for Phase Invertor V3; Tung Sol 6V6 power tubes.





























































My OSD Impressions –  Darren Porter


Just like with my first Trinity kit build (a TC-15)  this build comes via a significant milestone in my life.  I received a small inheritance and decided that I would honor my parents musical legacy with two “dream purchases” – a beautiful Ibanez Artstar AS153 and a Dumble-inspired amp build – the Trinity OSD kit.

The actual build went very smoothly. I did have one small issue on power-up that had me really scratching my head for about an hour but once I finally identified the problem I got it fully operational quickly. This was probably the second most-complicated build I have done (out of a dozen or so) so I was very happy with that. (Love the relay boards… gonna have to see if Stephen will sell me a couple of those on the side.) Probably the only thing I will change is eventually I would like to put a 5-pin DIN jack on the footswitch jack itself so I can just use a standard MIDI cable for the connection. That will make it easier to permanently mount the footswitch box on my pedalboard.

Sonically, this amp does NOT disappoint! This thing is a tone beast. The cleans, even with 6V6’s, have more than enough headroom for my live needs. I will eventually try 5881’s and 6L6’s though to see how a slightly stiffer output tube performs. So far, I have tried it extensively with my Godin Session (my HSS “practice guitar”.) This strat variant sounds very nice with the ODS, especially in the clean channel. The guitar that really sounds amazing though is the Ibanez Artstar. As an ES-335-inspired guitar, sounds absolutely fantastic with the ODS both in clean and in OD modes. Lots of bloom and when pushed it gives you that satisfying growl and touch sensitivity that the Dumbles are so famous for. I have not given it a workout with my pedalboard yet because I want to see what I can coax out of the amp without it first… this amp may end up shrinking my gigging pedalboard! So far I can’t see the need for all four OD pedal currently on there with this amp.

I did a little recording with it in my studio using my Suhr Reactive Load and Torpedo Wall of Sound IV for cabinet/mic impulse responses for silent mic-free recording. I had been using Scuffman Amps S-Gear for recording quite extensively lately because you can get some really good sounds out of this amp-sim plugin. One song in particular that I did extensively used the “Duke” amp sim which is modelled after Robben Ford’s #102 Dumble amp. It did a really good job of capturing that sound with my G&L Tele and I had it sounding pretty darn good, or so I thought. I re-tracked one of the lead tracks with my Ibanez and the ODS/reactive load combination and WOW! I threw a little reverb on it with Abbey Road Plates plugin and the track came out AMAZING! Soooo much better than the S-Gear attempt, which like I said, actually sounds really good as well, but the real amp “feel” is just “there” with the actual ODS in the mix. I’ll try and retrack the whole song with this setup this week and post a link to the final all-ODS version. My favorite cab impulse response is a 2×12 loaded with WGS ET-65’s, which is also the speaker in my live rig.

I probably won’t post pics of the guts. My wiring looks good but my eyelet board building is not the neatest in the world. It’s only a matter of personal preference but I much prefer turrets. I just get much neater looking and (for me) more serviceable builds with them, but I know there are those who feel exactly the opposite so don’t interpret that as a criticism at all.

Once I get my custom head cab from Stephen, I will post pics of that. I have a feeling it will be very nice indeed! Then I will have to decide if I want to build my own speaker cab to match or just have Stephen build me one.

Trinity OSD: A great amp – Roland Vaivads

Since completing the build some weeks I have had the opportunity to play a variety of guitars through the OSD amplifier as well as coupling it with various speaker combinations and my original impressions are confirmed. It has proven to be very versatile with a excellent response and feel and a wide operating range which is suitable for styles spanning from Jazz to Country, Blues and Rock. My congratulations on a fine product.

OSD is absolutely the best amp I’ve ever played – James Slayden

I just wanted to tell you how much I like the OSD. Absolutely the best amp I’ve ever played. The kit was fantastic, went together without a single hitch and has me staying up late unable to stop playing..
I have a friend who will probably buy one and I find myself wanting to build another LOL.

Thanks a ton.





























































  • Channels: 1 switched – Clean / Overdrive
  • Controls Main: Volume/Bright;  Treble;  Middle; Bass; Master;  Presence
  • Controls OD: Trim; Level;  Ratio; internal control for PI balance
  • Power output into 8 ohms: 22 Watts with 6V6 / 38 watts with 6L6
  • Preamp Tubes: 3 – 12AX7
  • Power Tubes: 2 – 6V6 or 2 – 6L6 (switched transformer impedance)
  • Rectifier: Solid State Diode
  • Bias: Fixed, externally adjustable with test points
  • Choke:  no
  • Combo Speaker:  per customer choice
  • Outputs:  2
  • Speaker Output: 4, 8, 16 switched
  • Voltage Support: 100V, 120V, 200V, 230V, 240V @60Hz / 50Hz
  • Weight:  Head: 20 lbs., 112 Combo 50 lbs.
  • Switches:  Rock / Jazz;  Mid Boost
  • Footswitch for PAB (pre-amp boost) /OD
  • Passive Effect – In  /  Out.  Optional FET buffered effect loop with pre-amp out.
  • Chassis Dimensions:  17″ W X 2-1/2” H X 8-1/2 ” D
  • Circuitry based on Dumble ODS #124 Skyliner
  • Tubes Not Included With Kit

Video Samples

OSD Kit build

Successful and talented first time kit builder.

Pricing Options

Canadian Customers Click 'Inquire' to receive up-to-date CAD pricing and shipping. Include postal code for quote.
We price affordably while managing fluctuating exchange rates with our suppliers. Our CAD best price guarantee accurately reflects our costs.
$868 USD
OSD kit with all components except tubes and cabinet.
OSD Head Cabinet
$350 USD
OSD Head cabinet
OSD Combo Cabinet
$480 USD
OSD 112 Cabinet without speaker
OSD Tube Buffered Fx Loop Kit
$118 USD
OSD Fx look kit with all components on PCB


Your Name
E Mail:

Payment Information

Payments can be made through PayPal to sales@trinityamps.com. Payments can also be made using Interac e-Transfer, money order, cashier’s or personal check to Trinity Amps Inc.

We accept Canadian credit cards at our shop or by phone.

If you are located outside of Canada and want to make a payment using a VISA or Mastercard, an invoice will be provided using PayPal’s credit card service. No PayPal account is required.

Please be sure to send your full shipping address and contact phone number when ordering. If you have any questions, please contact us for more information, visit our web site or forum.

All prices are listed in US dollars. Orders ship from Brighton, Ontario, Canada, applicable taxes not included. Specifications and prices subject to change without notice.

Trinity Amps Inc.
165 Kanata Dr.
Grafton, ON
K0K 2G0

+1-905-373-6571 Canada, EST
