Hi fellas -

Been lurking for some time, but met Daz through a different forum. I had a question regarding tranformers.

I'm building my first amp, a Ceri@tone DC-30. However, I wanted the amp to have genuine Matchless trannies. I ordered them from Dave at Westlabs.com and they are gorgeous and HEAVY.

One snag though: the wiring setup is set up differently AND it's not labled. I looked at the schematic, Ceri@tone layout, the Westlabs layout and attempted a side-by-side diagram, CT PT layout vs. Westlabs PT layout. I sent it to Daz, who was eager to help, but unable as he built his clone with CT trannies.

Has anyone here physically built a DC-30 clone and can - wire for wire - walk me through what each one does. For this reason, we'll pretend that we are looking at the PT upside down, mounted in the chassis for wiring.

Left side top to bottom:

Red #1
Red/Yellow
Red #2
Orange#1
Orange#2
Green

Right side top to bottom:

Green #1
Green/White
Green #2
Brown/White
Purple/White
Black/White
Black
Brown
Purple

Please be as specific as possible, or even Photoshop a diagram if you can. Talk to me like you would explain it to your 12-year-old.

I'm a little timid with the project as it's my first, I'm spending too much time making sure my solder joints are good and I'm not touching anything that can kill me. A real paint by numbers explanation would be very helpful. The kit isn't as explanitory as MetroAmp.com's kits.

Thanks to all of you in advance for the help.

Best,

VJ :D

_________________
3 reasons things don't get done:
1) You're incapable
2) You're ignorant or uninformed
3) You don't give a crap

---My Grandpa


Top
 Profile

 Post subject:
PostPosted: Mon Feb 12, 2007 11:26 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7418
Location: Brighton, Canada

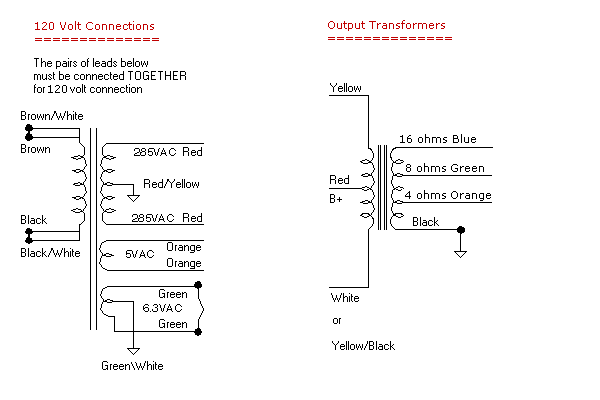

Ok, this is how to do it.

First Tie off Purple/White & Purple . Then forget about them!!

Then connect Brown/White to Brown
Then connect Black/White to Black

Connect 120 V Line to the Brown/White - Brown
Connect neutral to the Black/White to Black

The secondaries are pretty straightforward.


_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

 Post subject:
PostPosted: Tue Feb 13, 2007 12:12 am
Offline
Friend
Friend

Joined: Fri Feb 09, 2007 6:45 pm
Posts: 10
Stephen -

Thanks for the help. I'm going to assume that the Primaries that connect together are twisted and zipped, right?

Here's a link to the same document that I sent to Daz, check it out:

http://homepage.mac.com/jaronensley/FileSharing5.html

It's a crude drawing of the Ceri@tone and Westlabs, side by side.

On the Westlabs, the very short green wire with the eyelet goes to chassis ground, correct? It's the one circled on my diagram. I'm assuming that this is the equivalent of the "E" green wire on the Ceri@tone layout. Let me know if I am wrong.

Thanks,

VJ

_________________
3 reasons things don't get done:
1) You're incapable
2) You're ignorant or uninformed
3) You don't give a crap

---My Grandpa


Top
 Profile

 Post subject:
PostPosted: Tue Feb 13, 2007 12:28 am
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7418
Location: Brighton, Canada
You nailed it! Looks correct to me.

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

 Post subject:
PostPosted: Fri Jun 01, 2007 11:40 pm
Offline

Joined: Wed May 30, 2007 10:48 pm
Posts: 1
Location: Orlando
I'm working on the same build (a Ceri@tone DC-30 w/West Labs transformers) and I'm a little confused about wiring the standby switch. Which lead from the PT gets connected to the standby switch? The only standby switches I have ever worked with went between the rectifier and filter caps. Nik's layout seems different than that. Any thoughts?

Thanks!


Top
 Profile

 Post subject: Re:
PostPosted: Wed Feb 25, 2015 10:43 am
Offline
Experienced
Experienced
User avatar

Joined: Tue Mar 25, 2014 3:55 pm
Posts: 177
Location: Central California
coco wrote:
Ok, this is how to do it.

First Tie off Purple/White & Purple . Then forget about them!!

Then connect Brown/White to Brown
Then connect Black/White to Black

Connect 120 V Line to the Brown/White - Brown
Connect neutral to the Black/White to Black

The secondaries are pretty straightforward.



I know this is a VERY old thread, but someone on ax84 was asking about this transformer because they have no documentation for it. Do you recall how to wire it for 230V/240V primaries?

They were also asking about the 15W set.


Top
 Profile

PostPosted: Wed Feb 25, 2015 12:21 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7418
Location: Brighton, Canada

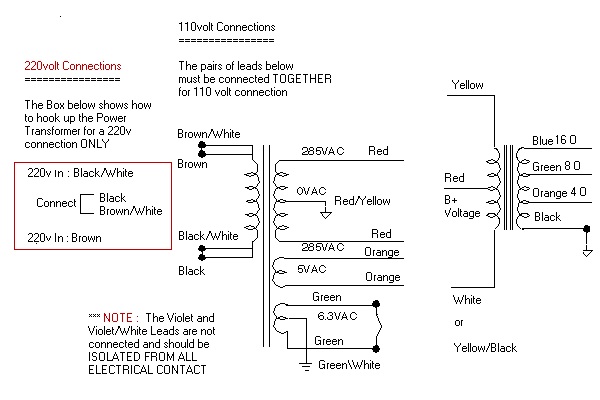

Here is the Westlabs docs for the transformers we used to use. 220 V hook up in diagram.

Attachment:
West_Labs_Transformers.jpg [ 64.6 KiB | Viewed 9642 times ]

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

PostPosted: Wed Feb 25, 2015 7:55 pm
Offline
Experienced
Experienced
User avatar

Joined: Tue Mar 25, 2014 3:55 pm
Posts: 177
Location: Central California
Thanks. You come through yet again!


Top
 Profile

PostPosted: Thu Feb 26, 2015 10:42 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7418
Location: Brighton, Canada
Nothing like being able to search the archives! You're welcome!
