 Post subject: Need some ID help
PostPosted: Mon Feb 04, 2019 4:06 pm
Offline

Joined: Sat Feb 02, 2019 8:17 am
Posts: 2
Attachment:
IMG_1554.jpg [ 725.68 KiB | Viewed 1574 times ]
Attachment:
IMG_1551.jpg [ 872.17 KiB | Viewed 1574 times ]

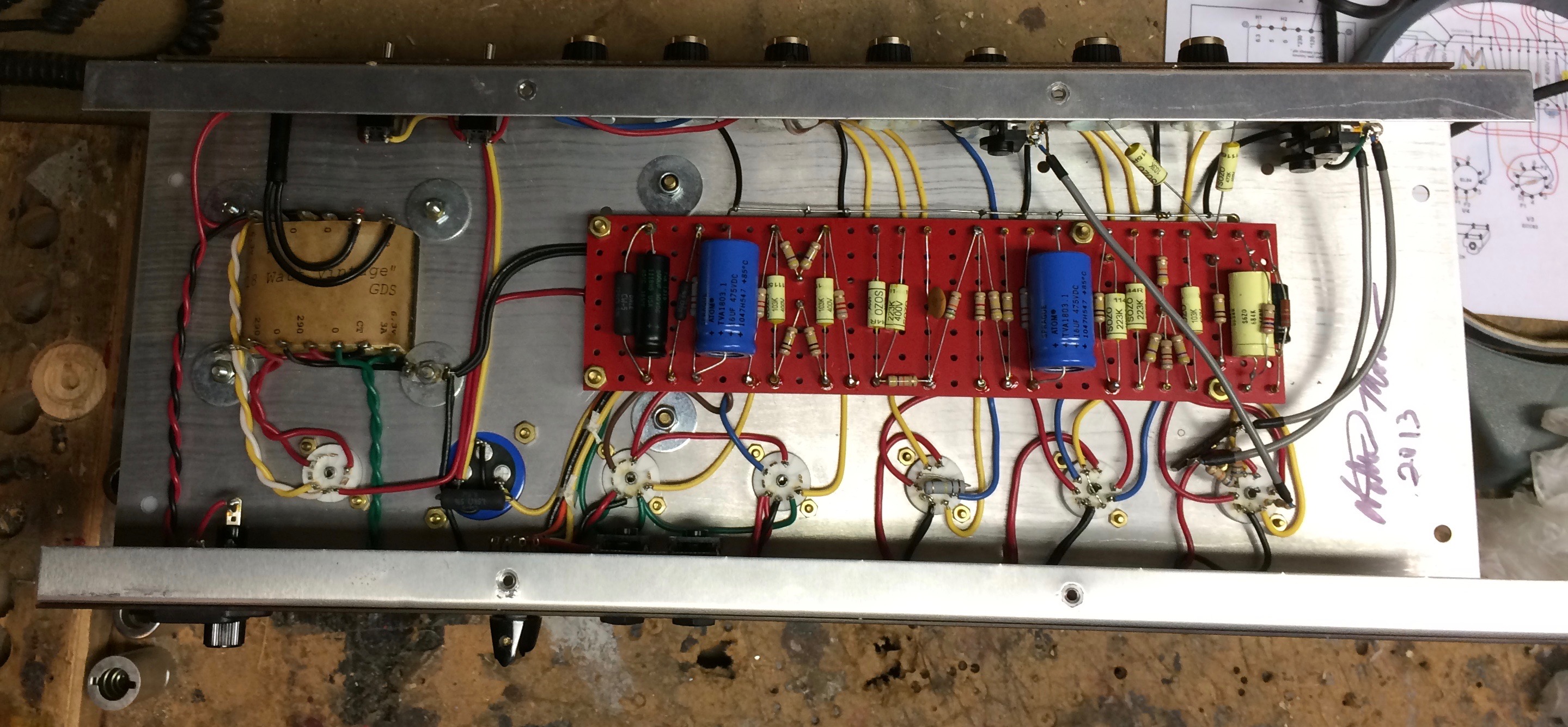

Got this kit built 18 water recently. The guy I got it from was clueless as to who built it much less who made the kit. It's got a 20" chassis and the only one I've been to determine as having this size chassis is Trinity. This was built in 2013, does this look like a Trinity amp kit? What schematics would match it? And are there any gurus who can help figure out a slow pulsing going on in the background on this amp. Thanks in advance.


Top
 Profile

 Post subject: Re: Need some ID help
PostPosted: Mon Feb 04, 2019 4:59 pm
Offline

Joined: Sat Feb 02, 2019 8:17 am
Posts: 2
Ok looking at the pic I decided to check online and see what GDSwould turn up. OK it’s not a Trinity. Still looking for help on the pulsing.


Top
 Profile

 Post subject: Re: Need some ID help
PostPosted: Mon Feb 04, 2019 7:12 pm
Offline
Experienced
Experienced
User avatar

Joined: Wed Aug 26, 2009 11:27 pm
Posts: 273
Location: Ontario
Some sort of 18watt TMB with a plexi flare would be my guess. don't now who's layout it is . But I do see the phase invierter as the second tube .

Theres may layouts for this.

This. looks like its close to yours except for the the firs two cathodes res/cap being reversed. http://site.triodestore.com/18WTMB.pdf


As for you pulsing issue is it in both channels volume up down ?


Top
 Profile

 Post subject: Re: Need some ID help
PostPosted: Mon Feb 11, 2019 11:48 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7428
Location: Brighton, Canada
Def not trinity. Uses GDS iron and his style chassis s maybe...

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

 Post subject: Re: Need some ID help
PostPosted: Fri Feb 15, 2019 11:45 am
Offline
Experienced
Experienced
User avatar

Joined: Wed Aug 26, 2009 11:27 pm
Posts: 273
Location: Ontario
Found a closer layout
http://rh-tech.org/public/18-Watt/18_Watt_TMB.pdf


Top
 Profile

 Post subject: Re: Need some ID help
PostPosted: Fri Feb 15, 2019 12:19 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7428
Location: Brighton, Canada
sazafraz wrote:
"

Yeah, probably that's the one. Nice layout but the order of the tubes in that design was always bad as was the location of the MV but Trinity changed all that!

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps
