Trinity Amps has been providing Guitar Amp kits and relieving G.A.S. since 2004. What differentiates our kits from others is part quality, fit, documentation and support. We are pleased to offer our TRIWATT Custom Lead in Kit for.
Our TRIWATT CUSTOM LEAD head kit is priced at $640 USD and includes all Components AND our Partridge Design, 50 Watt Custom Heyboer Transformer set.
Shipping not included. $40 shipping in North America. Canadain Customer pay applicable taxes.
Key points about the TRIWATT Design:
* Big Hiwatt DR clean tones and breakup at more ear-friendly levels
* Vintage style early '70s 103 preamp (with cathode-follower)
* Three-inputs - Normal, Bright and Link, like Dave Gilmour's 3-input amps
* Switchable 80s' "Biacrown era" high-gain OL/Lead mode, with Overdrive control
* Early Hiwatt style 12AT7 phase invertor, with 12AX7 option for increased drive
* Solid State rectified, fixed-bias, 22 Watt 6V6 power stage, based closely on Hiwatt original
* 6V6 or KT66 operation with External Bias Switch, Bias Control and Test Points
* Transformers closely based on original Hiwatt Partridge transformers for definitive tone.
* Compact physical format and cabinet - chassis also fits other standard cabs
The Kit Features:

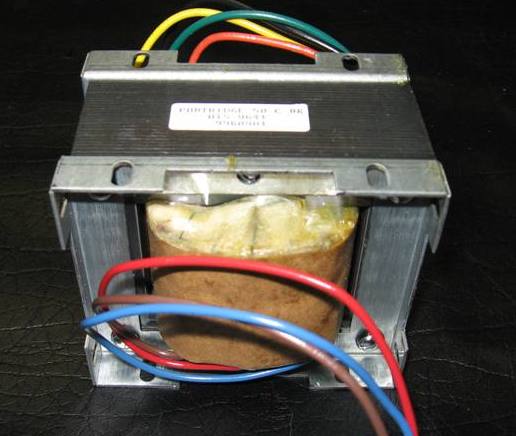

* Partridge design HEYBOER 50 watt Custom Transformers
* MALLORY 150 caps
* 1 Watt CARBON FILM resistors; Metal film where required for low noise
* CLIFF and Switchcraft jacks
* ALPHA pots
* JJ filter cap
* BELTON Micalex tube sockets. Tube retainers & shields
* 1/8" thick GP03 Turret Board with large size KEYSTONE Turrets
* CARLING progressive Power switch; LORLIN impedance switch
* 22 gauge hook-up Wire; 20 guage pre-twisted heater wire
* BELDEN Co-Ax cable
* All Mounting hardware, spacers and nuts
* Front Black faceplate with White lettering with 3 Inputs
* Pre-Cut 0.08" Aircraft ALUMINUM Chassis with tapped holes for tube mounting screws and silk screened rear face
* Detailed Assembly guide with large 11" X 17" size layout and schematic drawings
* Real SUPPORT.
We don’t think there is a better offer available for the quality of this kit and tone of this amp.
Chassis 20"w X 6.5"d X 2.5"h) and requires 18" X 2.375" cabinet cut-out.
Options:
* SOZO Mustard cap upgrade (1-.01, 2-.022, 5-.047, 2-.1) - $40
* Foot switch upgrade for OL/Lead modes - $100 (Regulated power supply & relay board, jack, includes footswitch)
* Order a Matching TRIWATT Head Cabinet (23"w X 8.5"d X 8"h) for $265
---------------------------
Also When Available
Transformer set - $250 USD $30 shipping
Chassis with faceplate - $125 USD $20 shipping
Turret board - $40USD $10 shipping
Progressive power switch - $10 USD
Chassis is 20" X 6.5" X 2.5" .090 Aluminum
_________________
Stephen
