 Post subject: Re: OSD Kit
PostPosted: Sun Jul 16, 2017 3:17 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7418
Location: Brighton, Canada
BREAKING NEWS

There have been so many requests that we are now working on an OSD kit! The design so far is a single board plus a relay board rather than the typical multiple multiple boards you see in such amps.
It will support 6V6 AND 6L6 power tubes. Two button footswitch with PAB & OD controls. No FET input but it will have an option for a buffered effects loop.
Same controls as our current OSD offering but in a more builder friendly package. Chassis size is a 17" W X 2.5" X 8" D

If you are interested in reserving one of the first production run, please email stephen@trinityamps.com to get on the list. Target price including Heyboer Custom transformers in the 650-70 USD range plus shipping. International power supply capability as well.

This will not be a Dumble clone but it is based very closely on slightly tweaked #124 schematic with less frills.

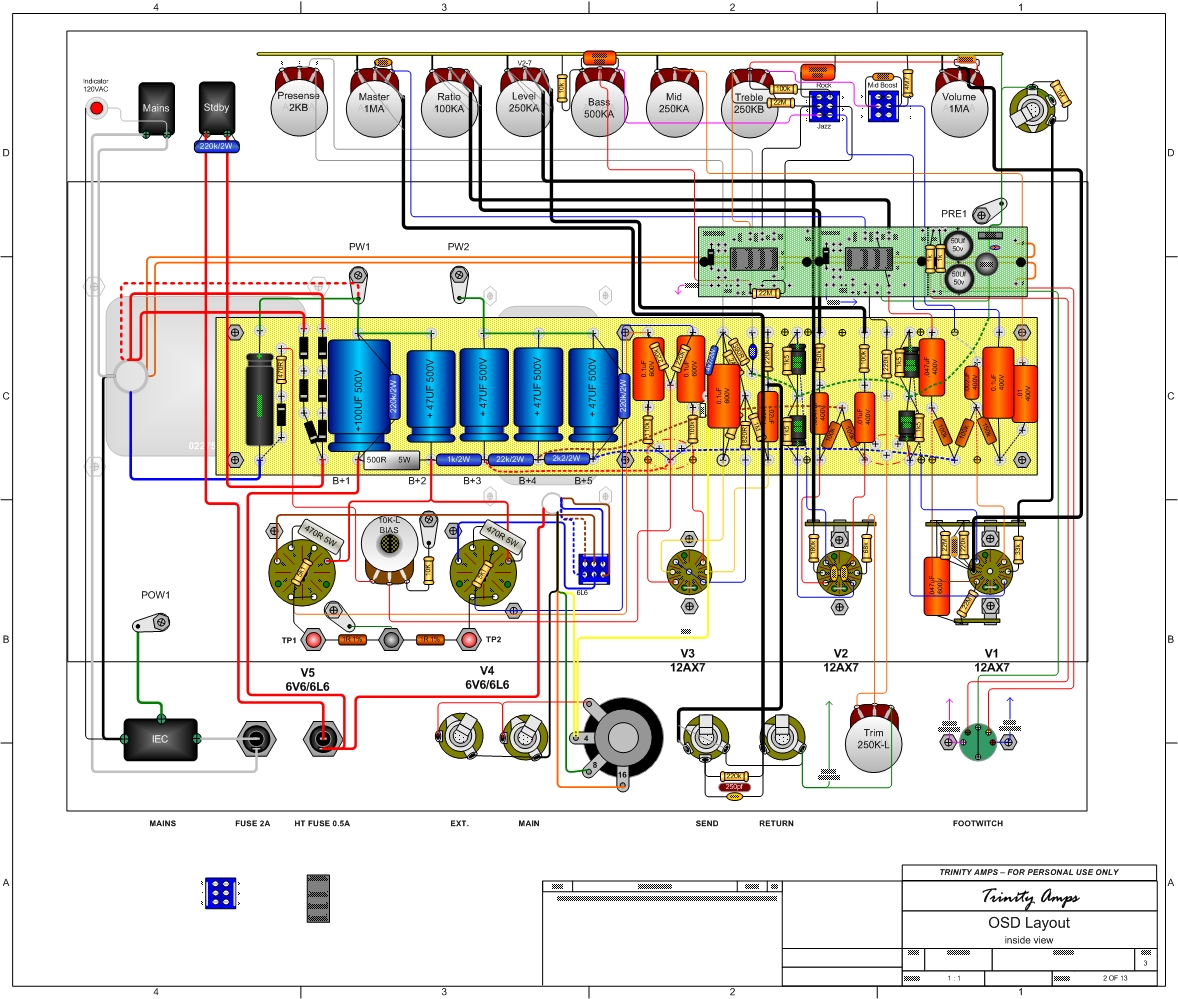

Status: Currently we have the first layout, schematic, BOM with selected parts done and the blank chassis and transformers have arrived for #1.


_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

 Post subject: Re: OSD Kit
PostPosted: Fri Jul 21, 2017 8:10 pm
Offline
Experienced
Experienced
User avatar

Joined: Wed Aug 26, 2009 11:27 pm
Posts: 273
Location: Ontario


Top
 Profile

 Post subject: Re: OSD Kit
PostPosted: Sat Jul 22, 2017 6:39 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7418
Location: Brighton, Canada
If you are interested in reserving one of the first production run, please email stephen@trinityamps.com to get on the list.

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

 Post subject: Re: OSD Kit
PostPosted: Sat Jul 22, 2017 6:48 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7418
Location: Brighton, Canada
Panels

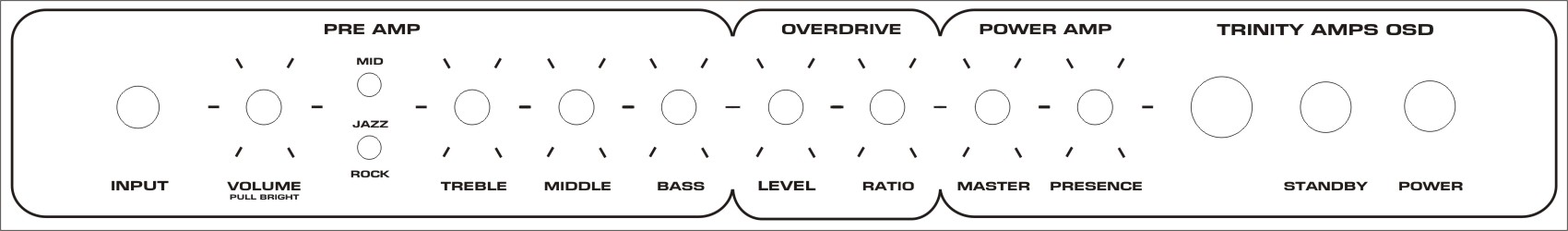

Front


Attachment:
OSD_mk2_front.jpg [ 59.99 KiB | Viewed 14092 times ]

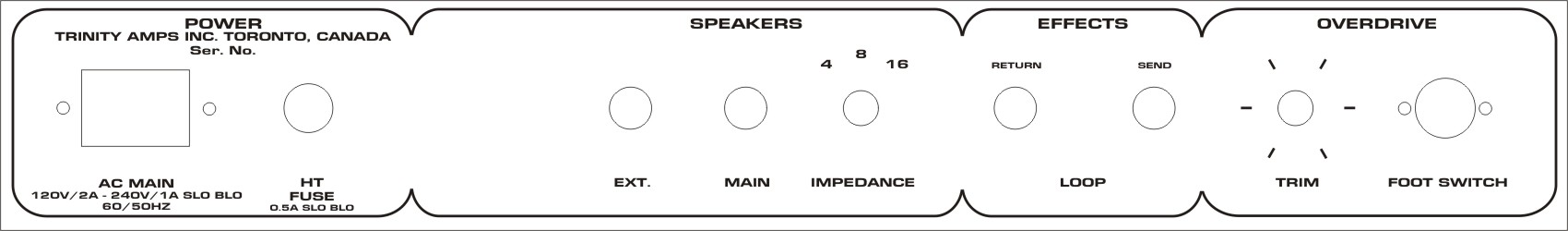

Rear


Attachment:
OSD_mk2_rear.jpg [ 58.67 KiB | Viewed 14092 times ]

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

 Post subject: Re: OSD Kit
PostPosted: Mon Jul 24, 2017 7:00 pm
Offline
Experienced
Experienced
User avatar

Joined: Wed Aug 26, 2009 11:27 pm
Posts: 273
Location: Ontario
Its on my list but i won't have time till the white shiat starts falling from the sky


Top
 Profile

 Post subject: Re: OSD Kit
PostPosted: Mon Jul 24, 2017 10:53 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7418
Location: Brighton, Canada
sazafraz wrote:
Its on my list but i won't have time till the white shiat starts falling from the sky


Probably close to launch day!

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

 Post subject: Re: OSD Kit
PostPosted: Tue Jul 25, 2017 1:31 pm
Offline

Joined: Fri Jun 02, 2017 2:49 pm
Posts: 9
This looks fun! Still saving up for the 18 TMB...planning a wedding and SWMBO is paying extra special attention to the bank account. Looking forward to that as well as this tone machine Stephen!


Top
 Profile

 Post subject: Re: OSD Kit
PostPosted: Mon Aug 07, 2017 6:59 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7418
Location: Brighton, Canada

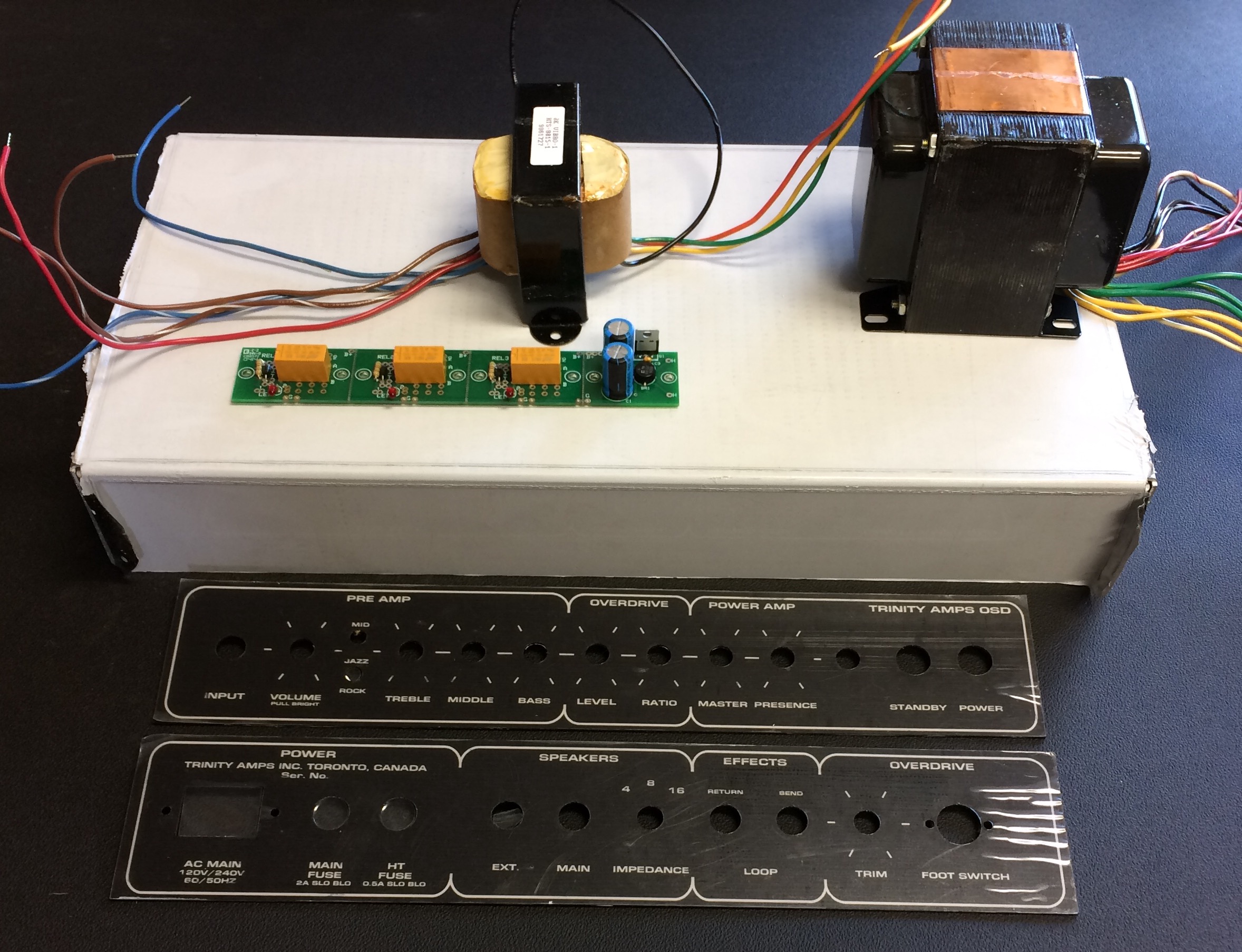

More progress towards the kit. Next step is to punch the chassis and make the eyelet board.
We will be building the first prototype mid-Septmeber.

Attachment:
image.jpeg [ 822.92 KiB | Viewed 13959 times ]

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

 Post subject: Re: OSD Kit
PostPosted: Fri Aug 18, 2017 10:28 am
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7418
Location: Brighton, Canada
We used the "Headphone Trick" to establish the best location for the transformers.

"First set up the power transformer. Wire up the primaries to a power cord, but do not wire up any secondaries-- tape the ends of the secondaries.

Now set up the signal transformer (output, reverb, whatever). Hook one set of OT secondaries, the highest impedance and ground, to a set of headphones. Tape the primary leads.

Put the headphones on, plug in the power cord, and start moving the signal transformer around. Try it all over the chassis, and also rotate it. While you might expect the least hum with the transformers as far from each other as possible and at right angles (and that may be the case for you), it might come at an odd angle and/or position. Sometimes the least hum occurs when the transformers are side by side. When you find the quietest spot, use a permanent marker to mark where the mounting holes should be."



Attachment:
IMG_5659 (Edited).JPG
IMG_5659 (Edited).JPG [ 602.1 KiB | Viewed 13849 times ]

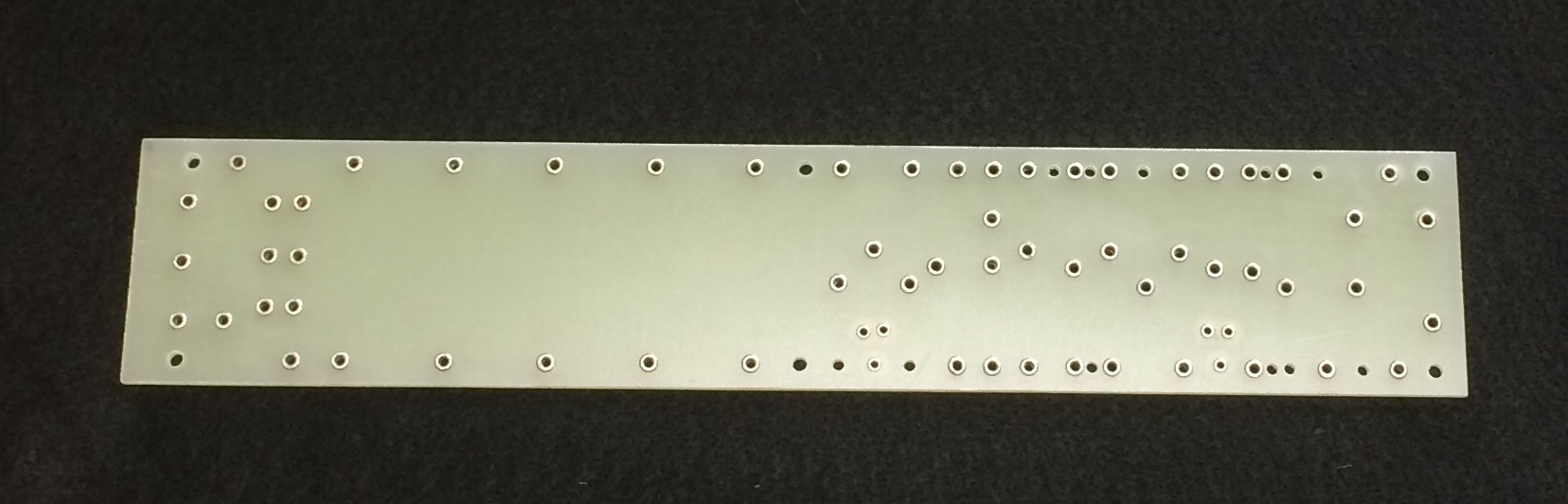

The bare eyelet board was built today.

Attachment:
IMG_5661 (Edited).JPG
IMG_5661 (Edited).JPG [ 132.37 KiB | Viewed 13849 times ]

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

 Post subject: Re: OSD Kit
PostPosted: Fri Aug 18, 2017 9:40 pm
Offline
Novice
Novice
User avatar

Joined: Tue Jun 14, 2005 6:35 pm
Posts: 90
Location: West Palm beach FL
Ive got some serious GAS going on for this kit! Ive eyeballed all the schematics and layouts many times but always moved on to something else. This looks like it will be worth waiting on rather than going some other route. . . Joe

_________________
Resistors not Transistors


Top
 Profile

 Post subject: Re: OSD Kit
PostPosted: Fri Aug 18, 2017 10:20 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7418
Location: Brighton, Canada
We resisted developing a kit because we thought it would be too difficult to build. But we figure we could re-design it to make it simpler for experienced builders.
You should have gas for it!

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

 Post subject: Re: OSD Kit
PostPosted: Sun Aug 20, 2017 7:24 am
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7418
Location: Brighton, Canada
Chassis design complete and the major parts laid out to ensure fit.

Attachment:
image.jpeg [ 1.52 MiB | Viewed 13834 times ]

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

 Post subject: Re: OSD Kit
PostPosted: Thu Sep 28, 2017 11:51 am
Offline
Friend
Friend

Joined: Fri Aug 07, 2009 8:13 pm
Posts: 11
Location: Crystal Lake, IL
This looks really, really interesting. I have built several ODS amps and I was actually about to embark on a 124 build. Looking forward to development!


Top
 Profile

 Post subject: Re: OSD Kit
PostPosted: Thu Sep 28, 2017 11:55 am
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7418
Location: Brighton, Canada
BarryW, check out http://www.trinityamps.com/product/trinity-osd-kit for more info!

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

 Post subject: Re: OSD Kit
PostPosted: Thu Sep 28, 2017 12:06 pm
Offline
Friend
Friend

Joined: Fri Aug 07, 2009 8:13 pm
Posts: 11
Location: Crystal Lake, IL
Thanks!


Top
 Profile

 Post subject: Re: OSD Kit
PostPosted: Thu Sep 28, 2017 3:15 pm
Offline
Novice
Novice
User avatar

Joined: Tue Jun 14, 2005 6:35 pm
Posts: 90
Location: West Palm beach FL
Great to see the progress! I have been waiting patiently. The amp looks great & I am super excited. I definitely Want one of the first ones out the door ! - Joe

_________________
Resistors not Transistors


Top
 Profile

 Post subject: Re: OSD Kit
PostPosted: Thu Sep 28, 2017 4:04 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7418
Location: Brighton, Canada
Joe 6v6 wrote:
Great to see the progress! I have been waiting patiently. The amp looks great & I am super excited. I definitely Want one of the first ones out the door ! - Joe



That can be arranged!

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

 Post subject: Re: OSD Kit
PostPosted: Fri Nov 17, 2017 8:55 pm
Offline

Joined: Mon Aug 08, 2016 9:32 pm
Posts: 5
Is Shawn Dore using any effects pedals with his OSD amp in the video?


Top
 Profile

 Post subject: Re: OSD Kit
PostPosted: Sun Nov 19, 2017 10:40 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7418
Location: Brighton, Canada
No, he dropped his pedals when he uses the OSD.

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

 Post subject: Re: OSD Kit
PostPosted: Sun Nov 19, 2017 10:45 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7418
Location: Brighton, Canada
STATUS:

16Jul17: Design concept complete – single Board concept; Layout & Schematic complete; BOM with parts selected ; blank Chassis & Heyboer Transformer set arrived.
14Aug17: Prototype Front panels received; selected parts received
17Aug17: Eyelet board built; Transformers located using headphones to find quietest position.
19Aug17: Completed chassis design and laid out the main parts. Ready to punch out chassis for build # 1 mid-September!
18Sep17: Prototype OSD completed using kit design. Layout & schematic tested while Chris Moir built the protoype. We have a working amp – no issues!
28Sep17: Successful Player Testing with Shawn Dore. He owns an original OSD & said the feel was virtually identical & the controls behave the same. He is very comfortable with and the ‘new’ tone which was basically the same. Check out Shawn playing his OSD Shawn Dore Band – OSD Demo
13Oct17: Costing completed; amp is tweaked and ready to roll. Using 25% larger output transformer.
25Oct17: Heyboer Transformers and Chassis have been ordered.
1Nov17: CAD design finalized and submitted for production.
13Nov17: Eyelet boards built; Parts being packed up for kits

Next Steps: Finish Packing kit parts; Finish Builders Manual

We expect to ne shipping kits for Christmas!
