 Post subject: triwatt build
PostPosted: Sat May 12, 2018 5:22 pm
Offline

Joined: Wed Jan 17, 2018 6:02 pm
Posts: 8
Been lurking around the trinity site for a while now. Finally had time and money in the same space for a build. Let me know if my tired eyes are missing anything as I go here


Top
 Profile

 Post subject: Re: triwatt build
PostPosted: Sat May 12, 2018 5:27 pm
Offline

Joined: Wed Jan 17, 2018 6:02 pm
Posts: 8

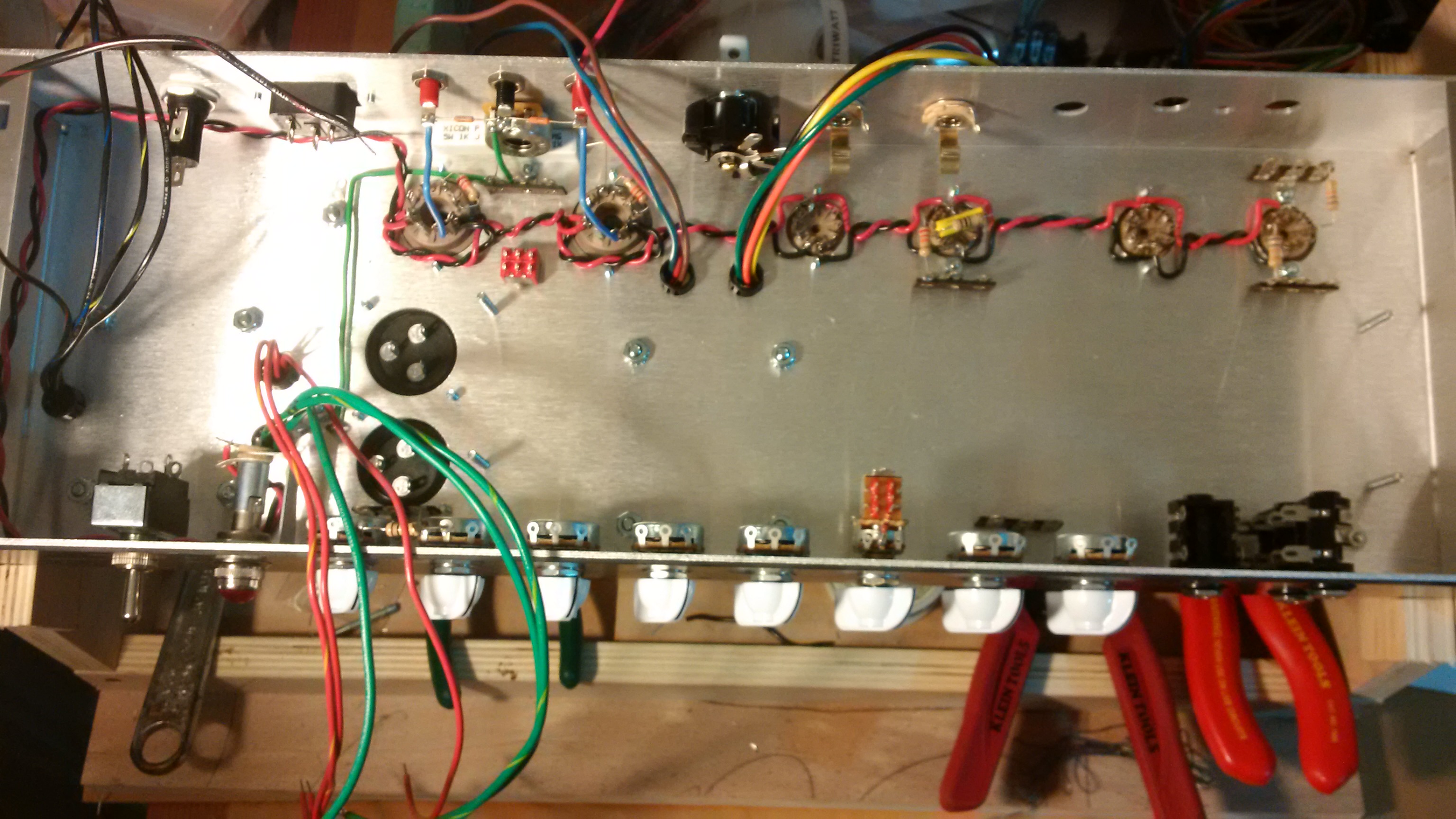

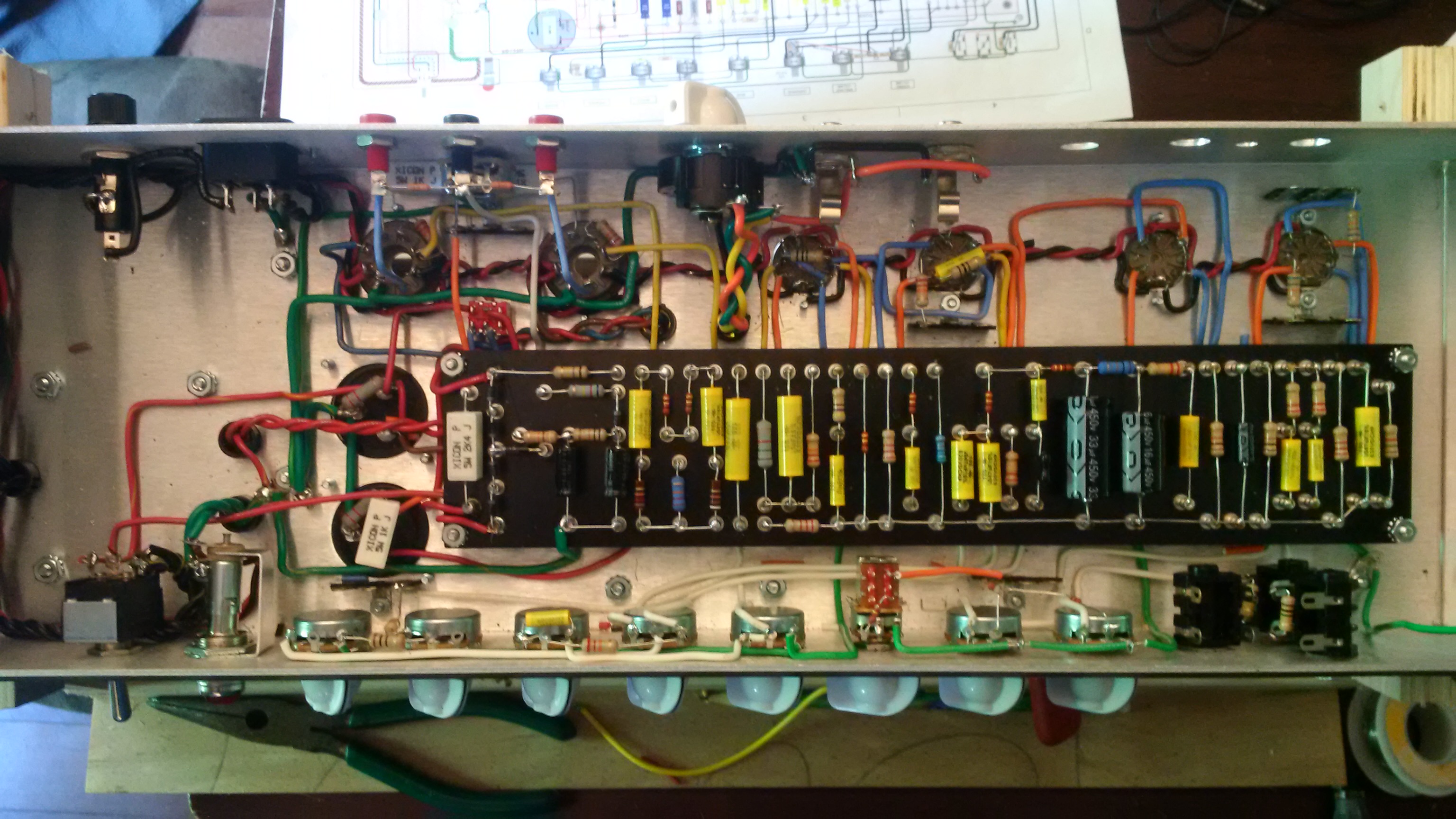

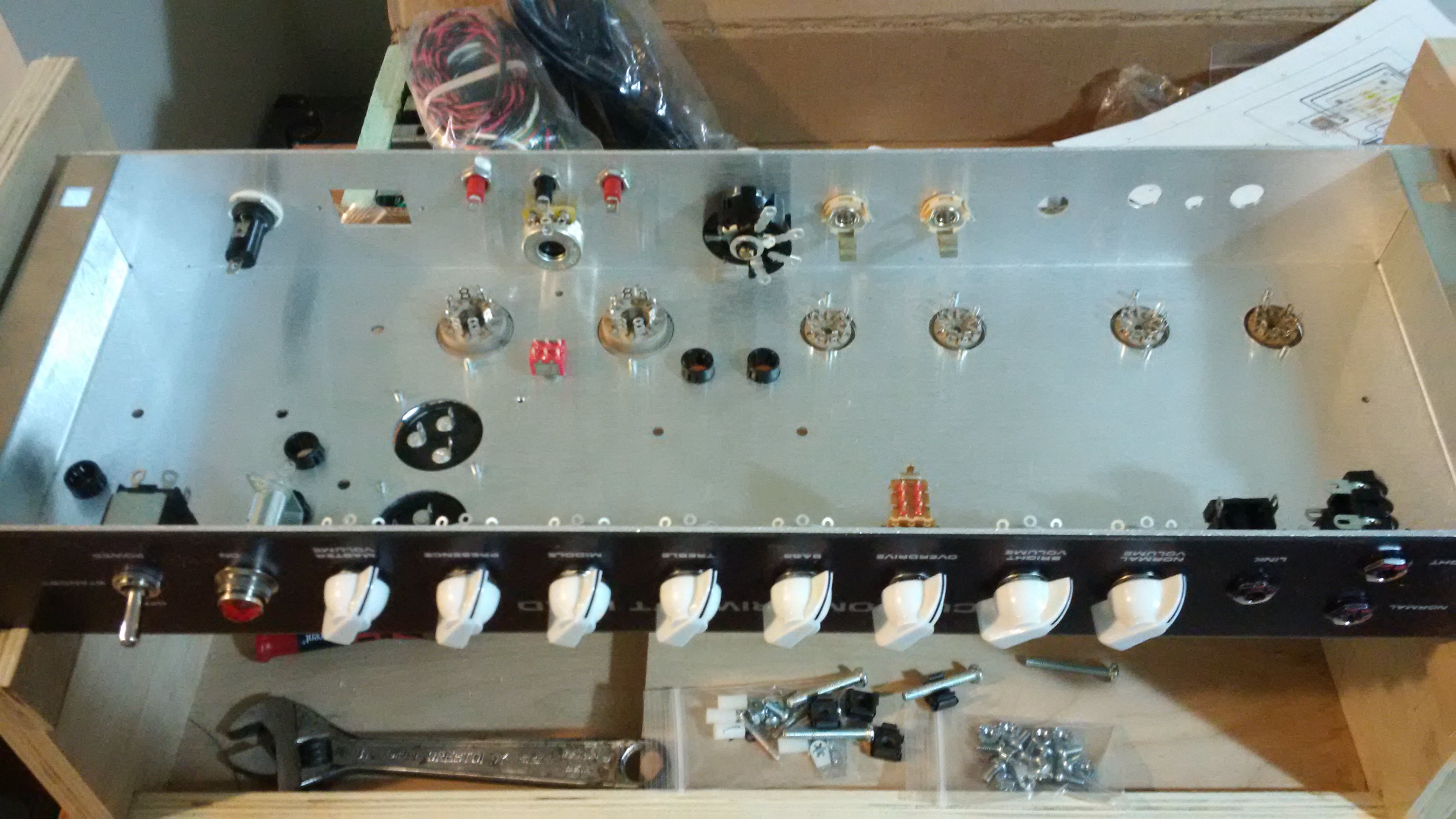

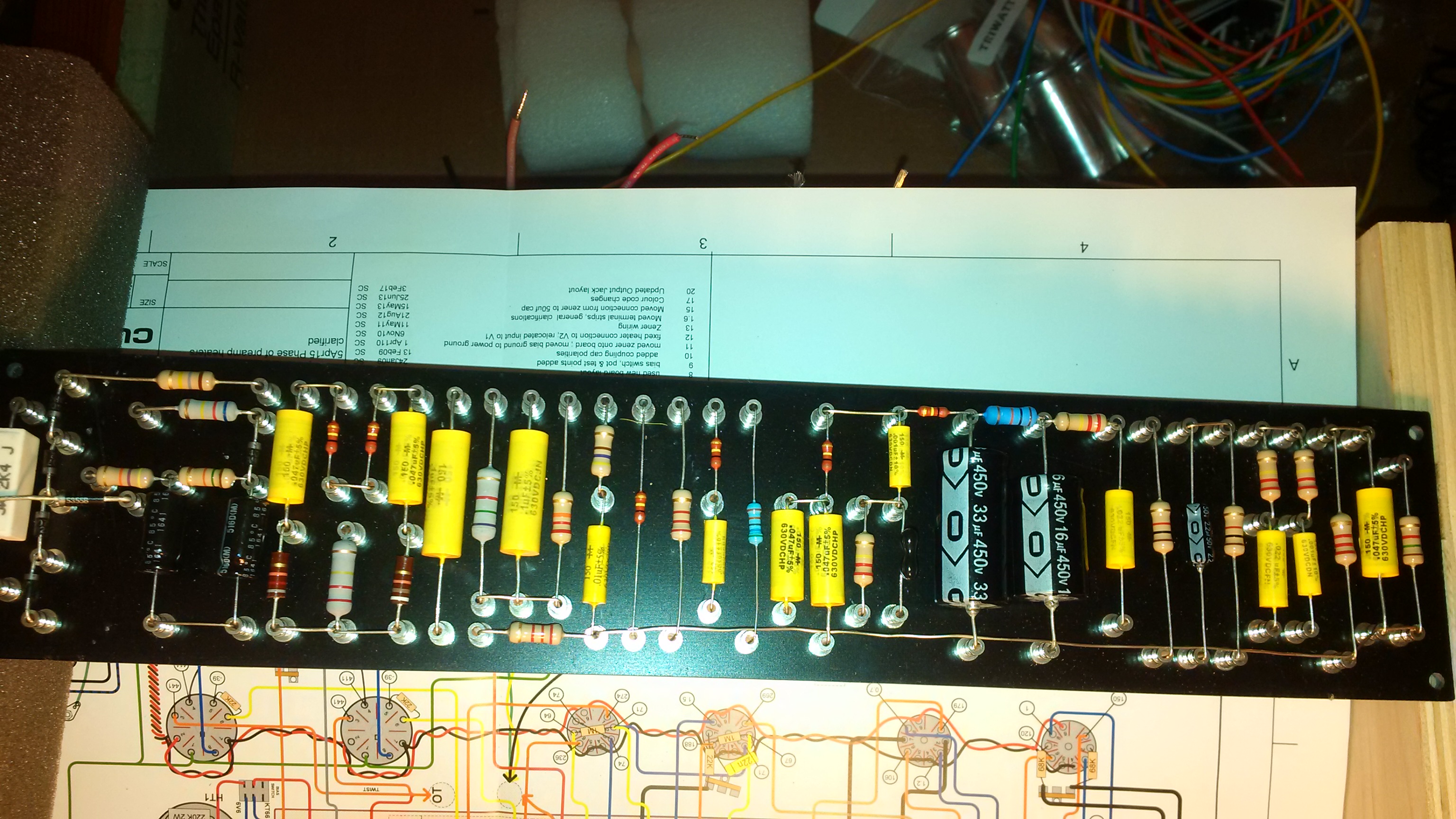

Some pics so far


Attachments:
IMG_20180505_153445.jpg [ 936.92 KiB | Viewed 11443 times ]
IMG_20180511_203327.jpg [ 837.86 KiB | Viewed 11443 times ]
IMG_20180511_204339.jpg [ 1.03 MiB | Viewed 11443 times ]
IMG_20180510_221245.jpg [ 946.77 KiB | Viewed 11443 times ]
IMG_20180512_140434.jpg [ 1.09 MiB | Viewed 11443 times ]
Top
 Profile

 Post subject: Re: triwatt build
PostPosted: Sun May 13, 2018 9:02 am
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7418
Location: Brighton, Canada
Looks good so far. Didn't check the values on the board tho.

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

 Post subject: Re: triwatt build
PostPosted: Sun May 13, 2018 12:48 pm
Offline

Joined: Wed Jan 17, 2018 6:02 pm
Posts: 8
Thanks,


Top
 Profile

 Post subject: Re: triwatt build
PostPosted: Wed May 16, 2018 12:55 pm
Offline

Joined: Wed Jan 17, 2018 6:02 pm
Posts: 8
Caught one mistake I made on the layout. Too many long days at work and only getting nights on the amp once the kids are in bed. Just checking in on the buffered loop. Am I reading right that I would run the line from the master V wiper over to the board, and then from the board down to the lug with the v3 resistor? Loving the build so far. Even my kids are getting in to watching it progress


Top
 Profile

 Post subject: Re: triwatt build
PostPosted: Sat May 19, 2018 7:15 am
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7418
Location: Brighton, Canada
Run the coax from the master wiper to the Fx board then run some coax from the Fx board to the 22K.

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

 Post subject: Re: triwatt build
PostPosted: Sat May 19, 2018 11:27 pm
Offline

Joined: Wed Jan 17, 2018 6:02 pm
Posts: 8

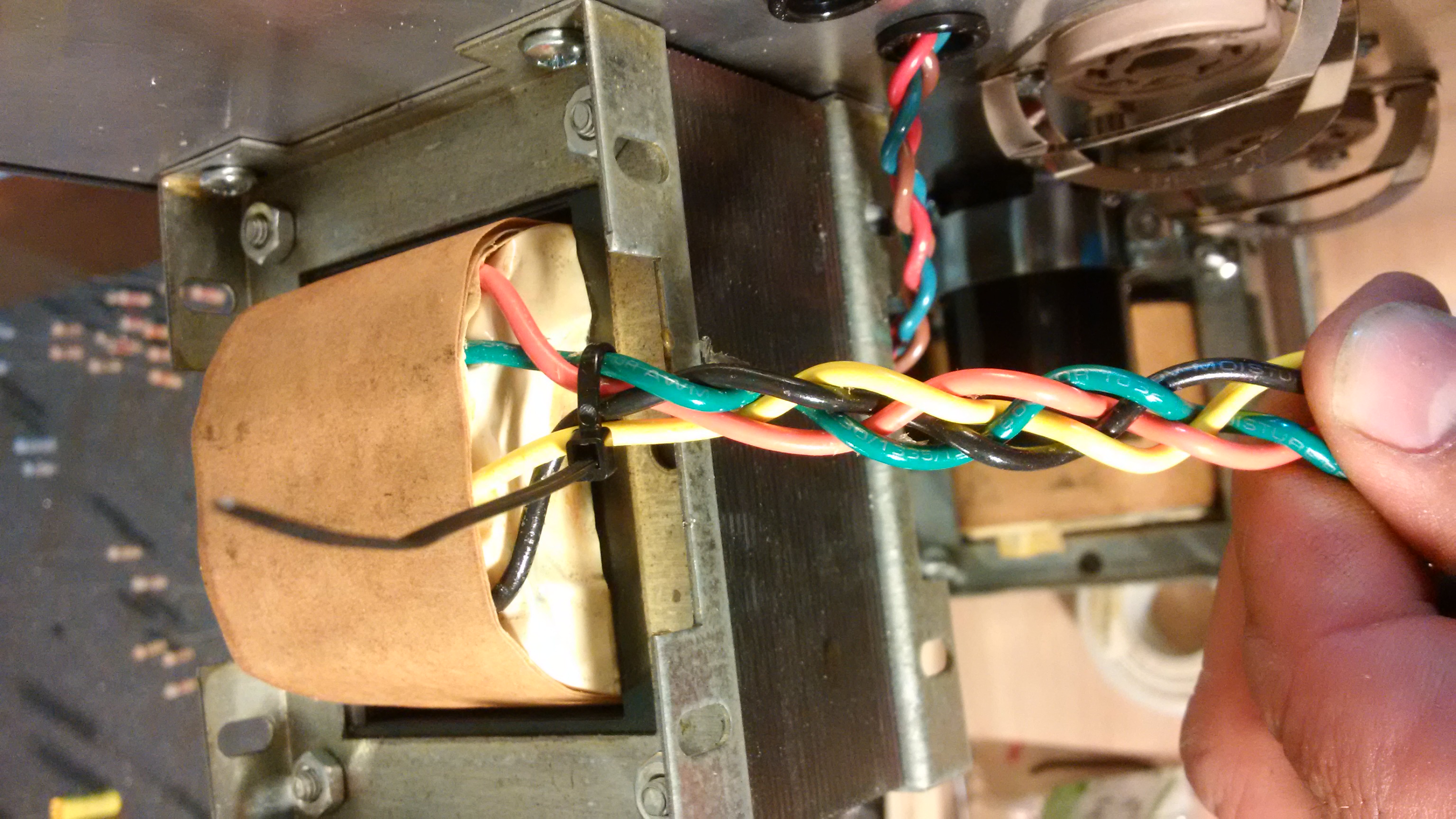

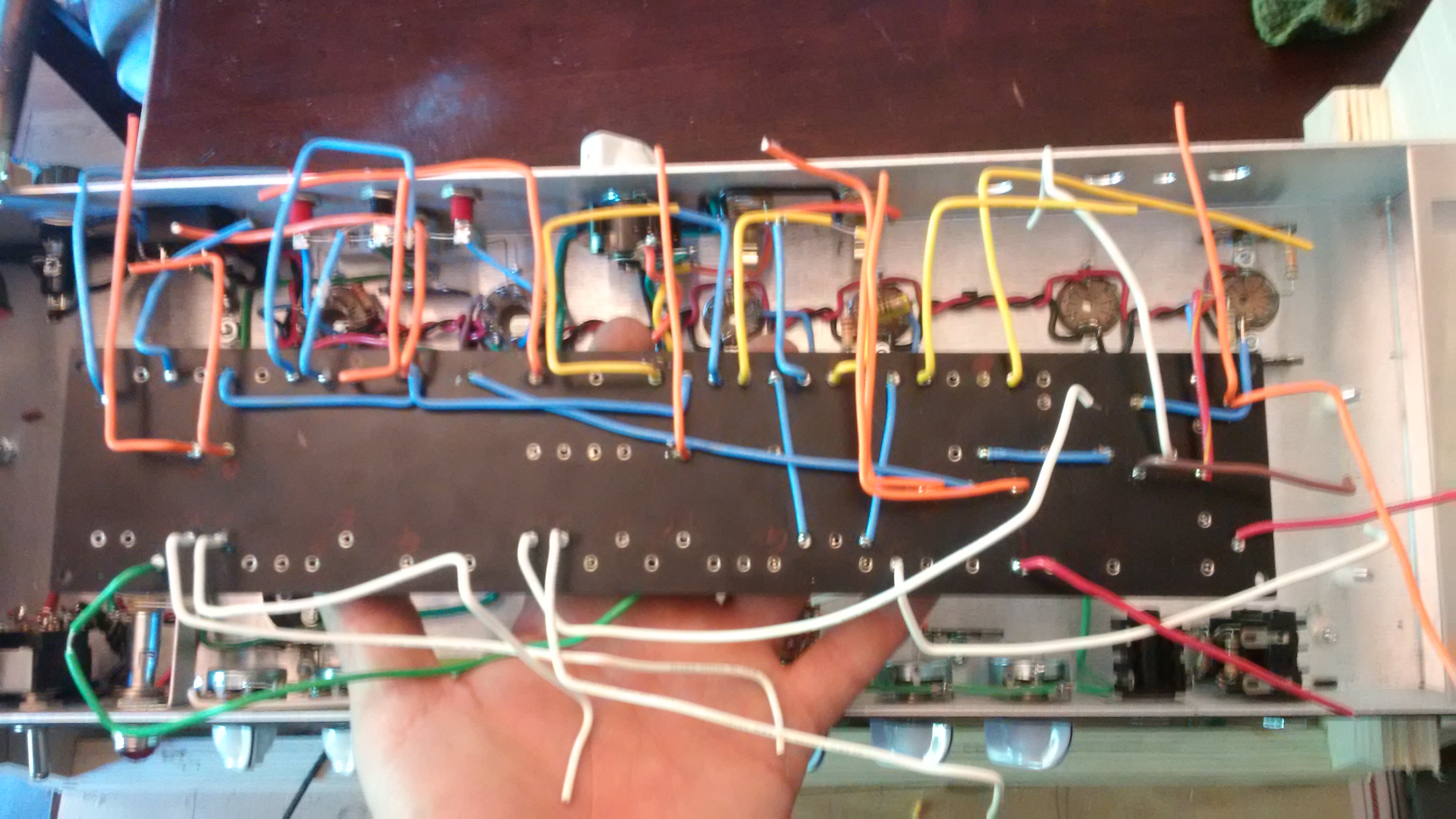

Had some time today


Attachments:
IMG_20180519_173317.jpg [ 1.01 MiB | Viewed 11322 times ]
IMG_20180519_142700.jpg [ 988.95 KiB | Viewed 11322 times ]
Top
 Profile

 Post subject: Re: triwatt build
PostPosted: Sun May 20, 2018 11:10 am
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7418
Location: Brighton, Canada
Nice work so far!! Keep it up!!

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

 Post subject: Re: triwatt build
PostPosted: Sun May 20, 2018 12:08 pm
Offline

Joined: Wed Jan 17, 2018 6:02 pm
Posts: 8
So much fun. So relaxing after work and kids events etc.. Love it.


Top
 Profile

 Post subject: Re: triwatt build
PostPosted: Fri Jun 01, 2018 1:24 pm
Offline

Joined: Wed Jan 17, 2018 6:02 pm
Posts: 8
Good morning /afternoon to you. I just preformed a start up on the triwatt.
I ended up using used tubes as I am waiting for some tubes I ordered to come it, and I have a couple questions,
I have 12ax7's in v1-3, at7 in v4 and old RCA 6v6's from a garnet amp in for power.

My readings are

V1 1:132
       3:1‎.3
       4/5:3
       6: 118
       7: 0
       8: 1.1
V2 1:199
        3: 1.2
        4/5:3
        6: 126
        7: 0
‎        8: .7
‎V31:287
       3:1‎.6
       4/5:3
       6: 190
       7: 0
       8: 1.6
V4 1:286
        3: 76
        4/5:3
        6: 265
        7: 38.8
‎        8: 87.3
V5 and 6
       2:3
       3:471
       4:437
       5:-32
       6:-32
       7: 03

      ‎Now I suspect when my new tubes arrive, these will change a bit. Most seem within spec as I read it,
But v4, 5/6 seem to be a bit out.
Do I wait for the new tubes
I should also say, I missed a couple jumpers on my initial start up, I did have a little heat from the Zener diode area. Once I have some time, I will be looking at it again. The jumpers I missed were between 620k and 180k next to the diode there, the one between the 2k2 and 7k5 near the bus bar

It does fire up, and I did plug a guitar in, very low noise floor, and the tone is ‎beautiful. I am excited to get it finished once I have some more time to set aside for it.


Top
 Profile

 Post subject: Re: triwatt build
PostPosted: Wed Jun 13, 2018 12:39 am
Offline

Joined: Wed Jan 17, 2018 6:02 pm
Posts: 8

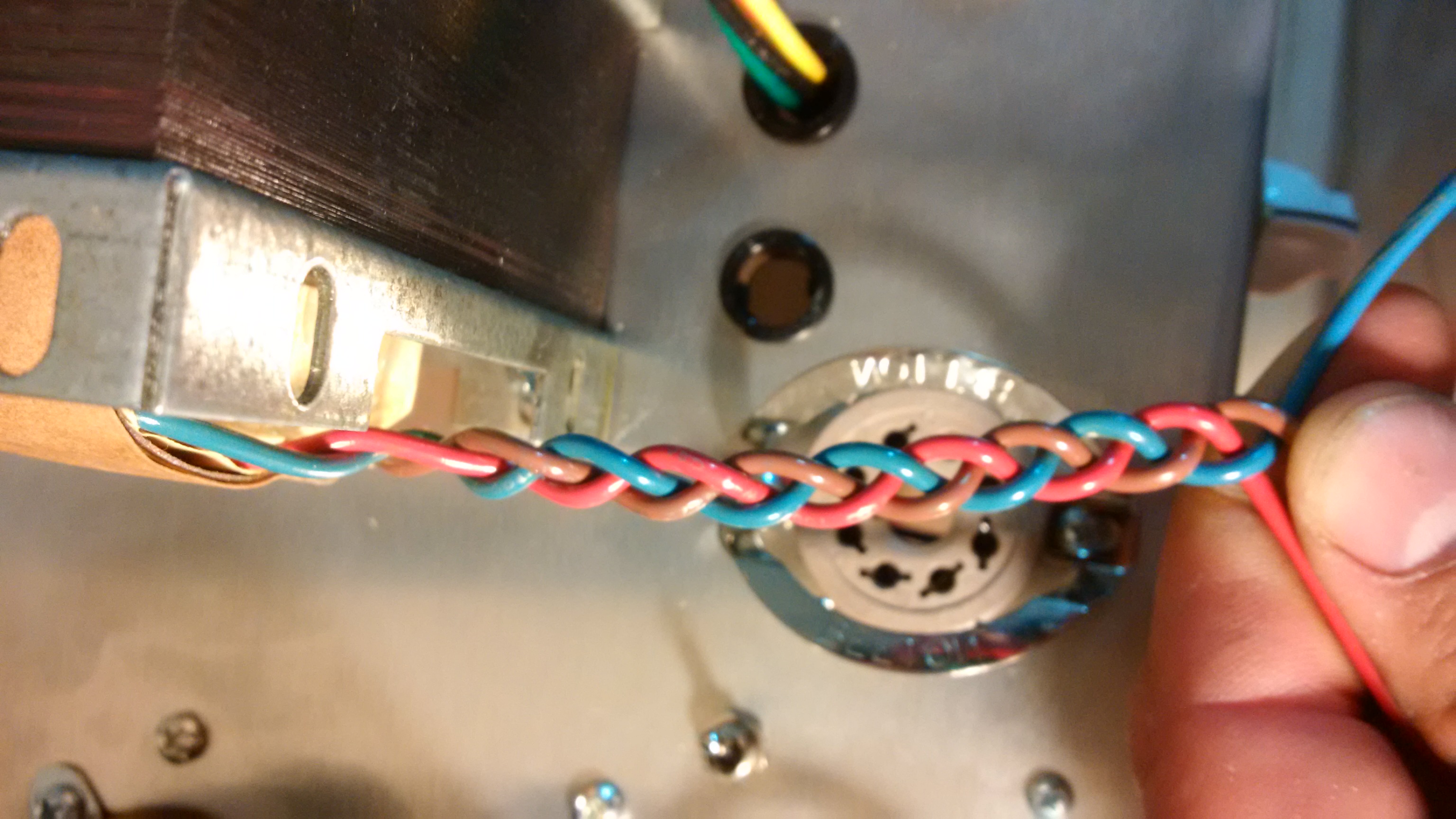

Getting closer


Attachments:
IMG_20180608_160728.jpg [ 824.31 KiB | Viewed 10933 times ]
IMG_20180608_170042.jpg [ 638.28 KiB | Viewed 10933 times ]
IMG_20180611_165550.jpg [ 762.56 KiB | Viewed 10933 times ]
