PostPosted: Tue Feb 22, 2011 1:27 pm
Offline

Joined: Tue Jan 25, 2011 4:40 pm
Posts: 9
Location: Ottawa, ON, Canada
My build is coming along nicely. All the wiring is really straightforward except for the PT.
It's the 4 black wires. I've looked at pics of other builds here, (thanx Dave) and from what I can see is the Bl/Rd and Bl/Wh lines are twisted and go to the 'C' lug on the 1M on/off pot used for the VRM.

I'm unsure of what to do with the Black line and the Black/Blue line coming out of the PT. I'm not sure which one is the primary.

I hope my explanation makes sense, and I'm hoping to get some help from the more experienced electrical people here.

Thanx

Clay


Top
 Profile

PostPosted: Tue Feb 22, 2011 6:13 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7430
Location: Brighton, Canada

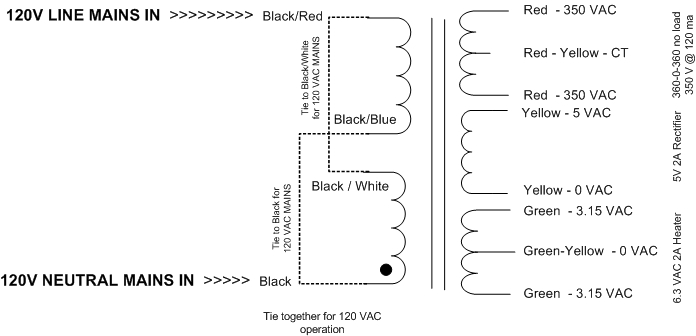

On the Tweed Power Trasnformers, there are 4 Mains leads. We have actually moving to this for all our PT now. There are tow primary windings

120V PRIMARY CONNECTIONS
120 V - use the primary in parallel hooking Black/Red to Black/White and Black to Black/Blue
Connect 120 mains across Black/Red and Black.


Attachments:
Deluxe 120V Transformers.jpg
Deluxe 120V Transformers.jpg [ 71.01 KiB | Viewed 6317 times ]

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps
Top
 Profile

PostPosted: Wed Feb 23, 2011 10:12 am
Offline

Joined: Tue Jan 25, 2011 4:40 pm
Posts: 9
Location: Ottawa, ON, Canada
Thanx Stephen,

Excuse my extremely limited electrical knowledge.

So, to put this in layman terms, I would tie both the black and the black/blue from the PT together, and connect these to the white (neutral) coming in to the box?

Clay


Top
 Profile

PostPosted: Wed Feb 23, 2011 10:49 am
Offline
Novice
Novice

Joined: Sun Feb 13, 2011 9:41 pm
Posts: 91
Location: Ontario, Canada
That's right. Slide a piece of heat shrink tubing over the black and black/blue pair before connecting to the white and then slide the tubing over the joint and shrink.


Top
 Profile

PostPosted: Wed Feb 23, 2011 1:13 pm
Offline

Joined: Tue Jan 25, 2011 4:40 pm
Posts: 9
Location: Ottawa, ON, Canada
This place rocks. :happydance:

Till next time.

Clay
