 Post subject: Voltage testing
PostPosted: Thu Oct 29, 2015 6:52 pm
Offline
Friend
Friend

Joined: Thu Oct 22, 2015 2:49 pm
Posts: 18
Hi all,

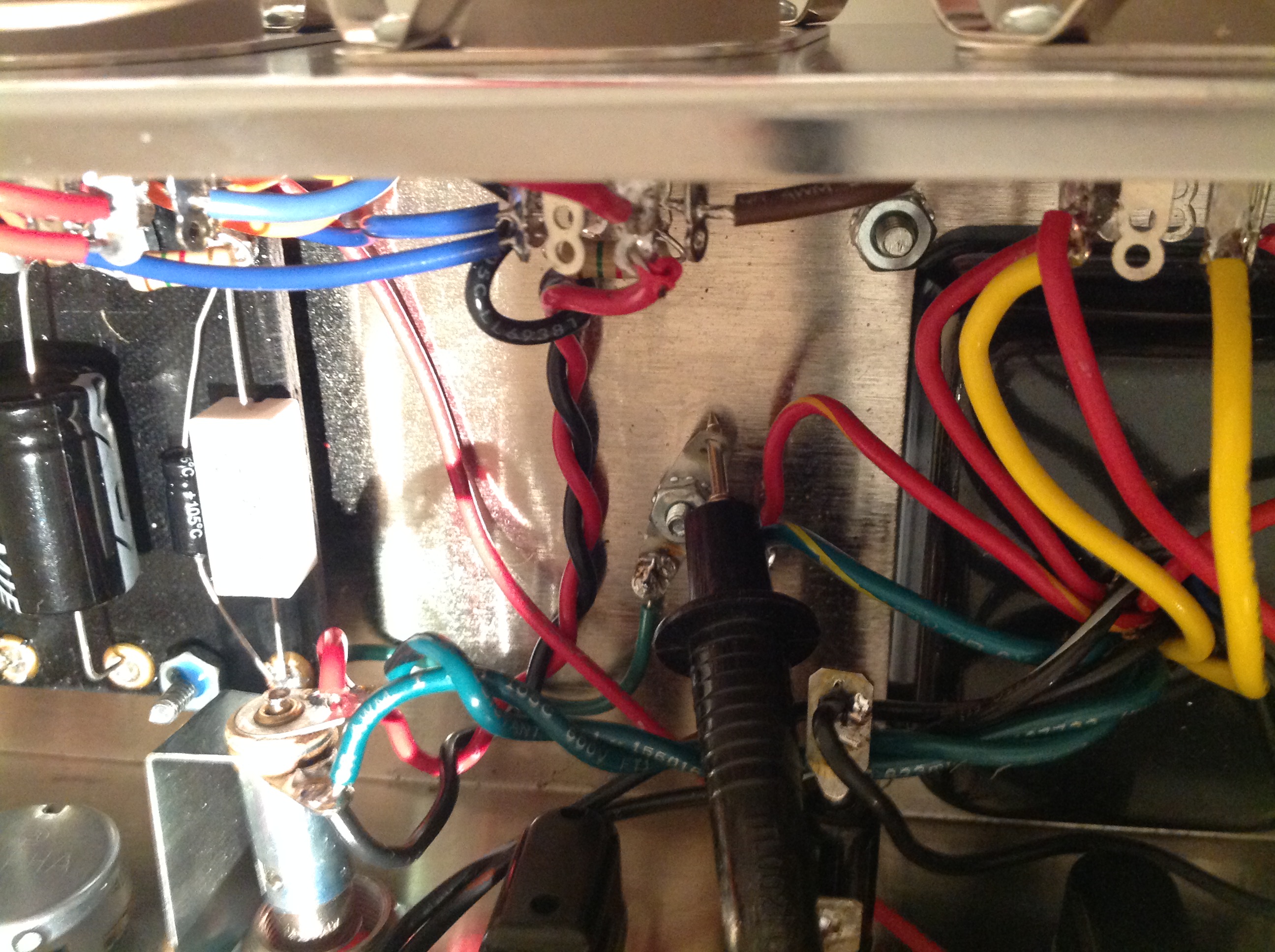

For voltage testing do I simply clamp ground to ground of amp and insert red probe into appropriate tube socket? As per images below.

Also - when doing this so I need a speaker attached at all times to ensure a load is on the amp.

Thank you!

Chris


Attachments:
image.jpeg [ 981.07 KiB | Viewed 2476 times ]
image.jpeg [ 1.01 MiB | Viewed 2476 times ]
Top
 Profile

 Post subject: Re: Voltage testing
PostPosted: Thu Oct 29, 2015 10:48 pm
Offline
Expert
Expert
User avatar

Joined: Sun Feb 17, 2008 4:47 pm
Posts: 960
Location: Toronto, Canada.
Yes clamp your - (black) probe to ground (chassis).

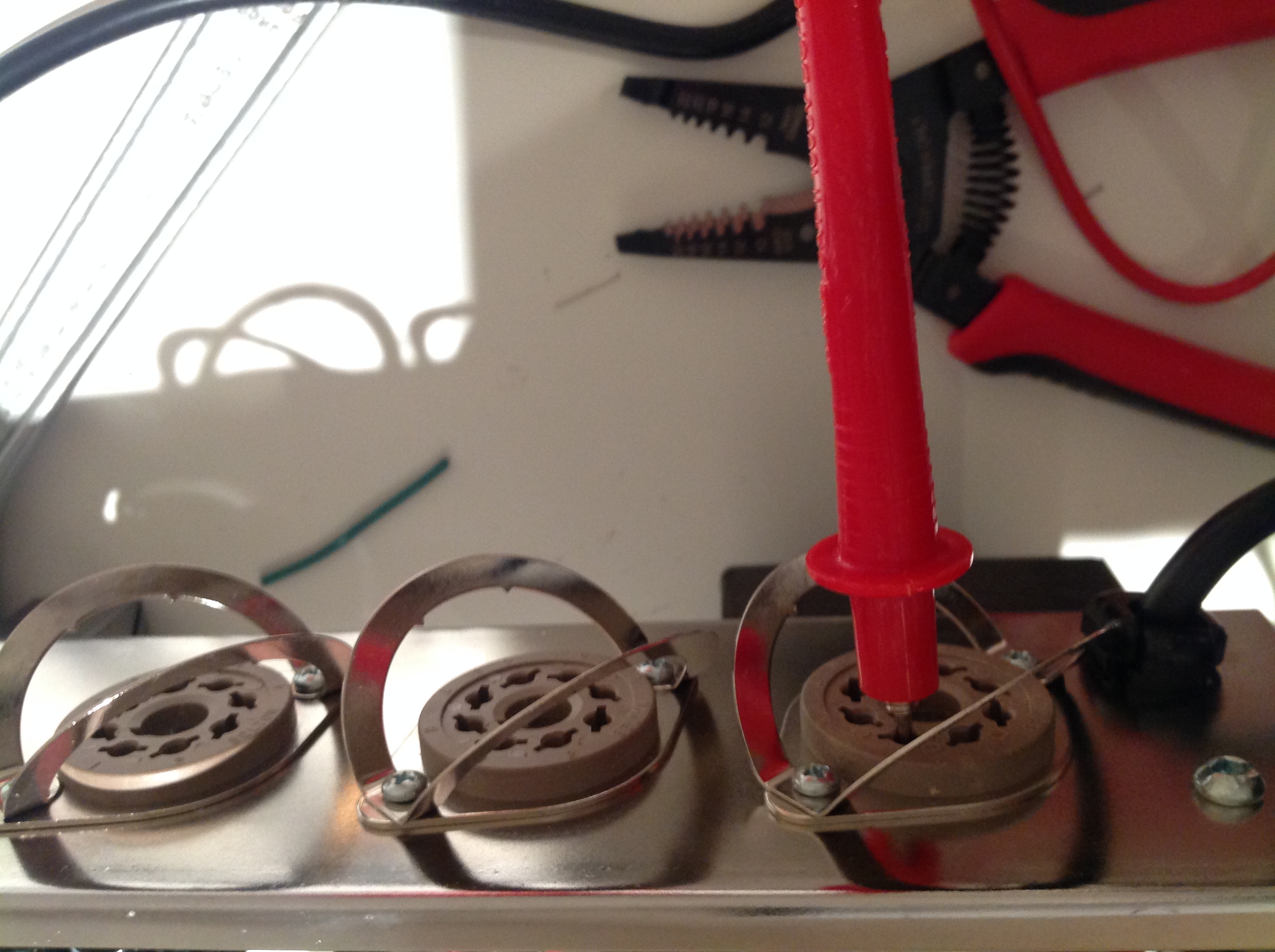

Use the +(red) probe to check voltages. You can either hold the probe on the pins inside the amp or stick them through like the pic.

If you are doing any tests with the 6V6s installed then a speaker is required.

_________________
http://pdfelectronics.com
