Does anyone have a close up visual of how to prepare the coaxial cable for connections. Thanks!


Top
 Profile

PostPosted: Tue Oct 27, 2015 4:41 pm
Offline
Friend
Friend

Joined: Thu Oct 22, 2015 2:49 pm
Posts: 18
This is for the volume control


Top
 Profile

PostPosted: Tue Oct 27, 2015 6:23 pm
Offline
Expert
Expert
User avatar

Joined: Sun Feb 17, 2008 4:47 pm
Posts: 960
Location: Toronto, Canada.
Should be in the builders guide

_________________
http://pdfelectronics.com


Top
 Profile

PostPosted: Wed Oct 28, 2015 2:24 am
Offline
Expert
Expert

Joined: Sat Dec 04, 2010 3:42 pm
Posts: 501
Location: Qualicum Beach, BC

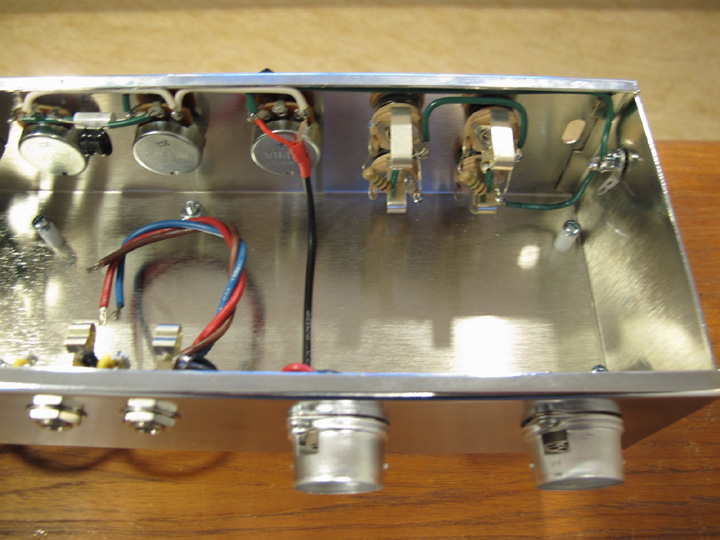

Here's the only picture I have of the coax cable at the volume control. I basically followed the instructions in the manual. The shield is covered with red heat shrink tubing and there's more heat shrink tubing around the cable where the inner conductor and the shield come out.

The shield isn't connected at the other end so it just gets cut off flush with the outer insulation and some heat shrink tubing goes around the end of the cable to ensure that the shield can't touch any part of the chassis. If it does it could cause a ground loop resulting in hum.


Attachments:
ChassisWiring007s.jpg [ 142.48 KiB | Viewed 4070 times ]
Top
 Profile

PostPosted: Wed Oct 28, 2015 6:15 am
Offline
Experienced
Experienced
User avatar

Joined: Sun Dec 11, 2011 2:00 am
Posts: 186
Location: A Land Downunder
Here ya go Chris, a great tutorial by Stephen from 2008 he probably forgot he did this one.

viewtopic.php?f=2&t=1144


Top
 Profile

PostPosted: Wed Oct 28, 2015 1:22 pm
Offline
Friend
Friend

Joined: Thu Oct 22, 2015 2:49 pm
Posts: 18
thanks!
