 Post subject: Spitfire Schematics
PostPosted: Sun Mar 20, 2005 8:01 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7519
Location: Canada

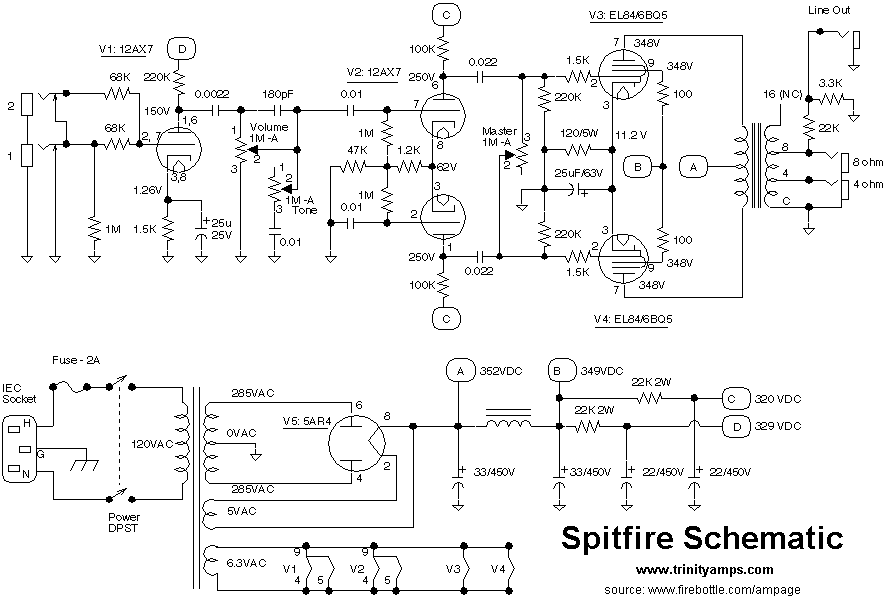

If you are interested in schematics for the Spitfire, I posted them:

Schematic at:
http://www.trinityamps.com/ForumGallery ... ematic.bmp

The schematic came from Ampage: www.firebottle.com/ampage

Layout at: http://www.trinityamps.com/ForumGallery ... layout.bmp

The Layout came from Jim Jones, House of Jim He also sells boards for the Spitfire.

His web address is: http://members.shaw.ca/house-of-jim

Let me know if you find any errors in them, I think they are good.
