Trinity TriFly

Details

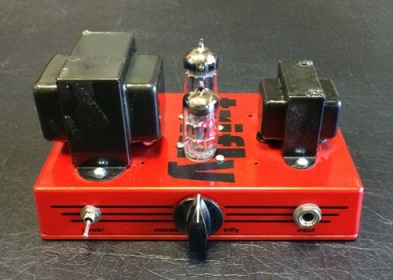

The TriFly is not a toy or a novelty amp!  It is a point to point,  all-tube,  one-channel amplifier with Volume control and Power switch and both 4 & 8 ohm outputs (16 ohm optional). It uses a 12AX7 Preamp tube and a 12BH7 dual Triode high current Power tube, in self-spit push pull mode, running a little “hot” to deliver more symmetrical clipping. The TriFly uses custom Heyboer transformers and a Conjunctive Filter is incorporated into the output stage to smooth out the overall response. A classic power supply is used.

Played on a Strat with Joe Barden pickups, the amp starts to break up at about 4-5. Dimed it really barks. It sounds excellent. There's really no need for a tone stack as you can control everything from the guitar.

John Coley (TriFly)

Having 2, full-size  9 pin tubes means interchangeability with both new stock and NOS tubes if you are searching for that special tone. Use the supplied 12AX7 or swap in one of several lower gain preamp tubes or switch from the supplied 12BH7 to 12AU7 for even lower power. The power supply is not a low cost, unserviceable, switching  or charge-pump design popular in many small amp designs which means it is serviceable and generates no radio interference. The point-to-point wiring means your tone can be tweaked  to your complete satisfaction using classic design techniques and the Red Sparkle enclosure is a dual-pedal size that can fit in your kit bag!

Features

The eyelet board for the TriFly is a new design approach. Full size tube sockets are  located in the middle of the chassis and large access holes through  the eyelet board allow easy component connection to the pins. The tubes are aligned so the heater connections are closest making it a very compact and quiet design!

Point-to-point wiring means optimal service and reliability. High-quality tubes, sockets, coupling capacitors and resistors are selected for tone, performance and reliability. The Trinity Amps Heyboer power transformer and output transformer are all custom built and designed with maximum tone in mind. The special, large design Output Transformer gives the TriFly an excellent bottom end with a thicker sound and also it has fantastic clean tone at low levels making it sound huge. No other small amp sounds so big!!

Specifications

  • Channels: 1
  • Controls: Volume
  • Power output: 1.5 Watt (1 Watt with opional 12AU7 or 2 Watts  with ECC99)
  • Preamp Tubes: 1-12AX7
  • Power Tubes: 1 – 12BH7 (self-split configuration) optional 12AU7 or ECC99
  • Rectifier: Solid State Diode
  • Bias: Cathode
  • Choke: no
  • Speaker: no
  • Speaker Output: 4, 8 Jacks. 16 optional
  • Switches: none
  • Voltage Support: 115 V 60Hz – 240 V 50Hz
  • Weight: Head: 2 lbs., 110 Combo 15 lbs.
  • Dimensions: Head: 3” H x 7” W x 5” D

Audio Samples

We tested the TriFly Two Watt Head Amp with:

Guitars:

  • Shawn Dore Fender Strat with custom wound pickups
  • Gibson Les Paul
  • Gretch Chet Atkins Country Gentleman
  • Fender Tele with ash body and maple fretboard
  • Stock Fender strat
  • PRS Mira

Pedals:

  • Keeley Java Boost
  • Zaphod Concepts Juice Boost
  • OCD
  • Octafuz (Hendrix)
  • Fuzz Face

Speaker Cabinets:

  • Celestion Classic Lead 80 in Trinity Amps 112 Side Winder
  • Celestion Classic Lead 80 212
  • Marshall 410 Tone Tubby Ceramic
  • Mesa 412 Celestion Vintage 30s
  • Vintage Marshall 412 Celestion Greenback
  • Marshall 412 JCM800 Celestion G12T-75
  • Fender 212 Alnico Closed back

Shawn Dore said after a week long trial: “The little amp is sounding great! The only 4 or 8 ohm cab I have here is a big big fender bassman 2×15″ cab and it sounds great through that! I think it’s a great apartment or bedroom amp!”

Rob Waite said “The true test for me is if a guitar or amp makes me want to keep playing it, or nudges me in a good way toward a certain kind of playing/expression. This amp totally hit that for me. If they start producing these, I will buy one for sure. I loved it.”

The TriFly really shone in the tone tests the best example was when using the Ash body Tele, on the neck pick-up. Under the vast majority of situations, this arrangement would be very hard to listen to, yet the TriFly made it sound nice! With the Gretsch Country Gentlemen you could hear the detail of the hollow body in the sound. It was quite glorious!

  1. Change Your Mind
  2. Dirty Politician
  3. I Don't Care
  4. Lately
  5. Put It On Me
  6. Rain
  7. Vodka

Pricing Options

Trinity TriFly
$350 USD
