 Post subject: Hello and a question
PostPosted: Wed Sep 14, 2016 4:25 pm
Offline
Friend
Friend

Joined: Wed Sep 14, 2016 4:14 pm
Posts: 24
Hello All -

I am new to Trinity Amps, I am building a Tramp, because it is awesome :)

Question: to add EL34 functionality I wire up a DPDT switch as in the lower right corner, correct? Is this a substitute for the existing 6v6/6l6 switch?

Thanks!

Mike


Top
 Profile

 Post subject: Re: Hello and a question
PostPosted: Wed Sep 14, 2016 11:28 pm
Offline
Expert
Expert

Joined: Sat Dec 04, 2010 3:42 pm
Posts: 519
Location: Qualicum Beach, BC
Hi Mike. Welcome to the forum!

The optional switch shown in the box on the schematic is an impedance switch. It lets you use the transformer's 2.5K tap on the primary which is a better match for an EL34 output tube.

You still need the 6V6/6L6 switch. It sets the bias for the output tube. The 6L6 position is the higher setting so use that with EL34.

Good luck with your build.


Top
 Profile

 Post subject: Re: Hello and a question
PostPosted: Thu Sep 15, 2016 7:05 pm
Offline
Friend
Friend

Joined: Wed Sep 14, 2016 4:14 pm
Posts: 24
Thanks, Mitch, that makes sense. I'm about half-way through, I expect to finish by the weekend :)


Top
 Profile

 Post subject: Re: Hello and a question
PostPosted: Sat Sep 17, 2016 8:05 am
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7519
Location: Canada
Spot on mitch, thanks!!

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

 Post subject: Re: Hello and a question
PostPosted: Sun Sep 18, 2016 12:07 am
Offline
Expert
Expert

Joined: Sat Dec 04, 2010 3:42 pm
Posts: 519
Location: Qualicum Beach, BC
Glad to help. I've never actually built a Tramp but I've been reading lots of great things about them on this forum and the demo clips sound great, too.

I recently got an old Bogen PA amp. 10 watts, 6L6 single-ended output, two-stage preamp. I'm going to mod it into something Trampish!


Top
 Profile

 Post subject: Re: Hello and a question
PostPosted: Sun Sep 18, 2016 8:25 am
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7519
Location: Canada
That will be fun!! If you need latest schematic / layout, let me know.

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

 Post subject: Re: Hello and a question
PostPosted: Sun Sep 25, 2016 5:55 pm
Offline
Friend
Friend

Joined: Wed Sep 14, 2016 4:14 pm
Posts: 24
Finally had a chance to sit down and finish. Wow! What a nice amp!

When I first put the tubes in the 6v6 was red-plating :( Strange since all the voltages were correct and everything seemed in place. Turned it off, took out tube, redid voltages, and all OK :? No shorts, no funny smells, all looks good. Huh. Is it the tube? Swapped in a KT66, moved the switch to 6L6 and let it rip. No red plate :) and absolutely gorgeous beautiful tone through an external cab. I looked around for an extra 6v6, swapped the switch back, and no red plate. So, bad tube!

One issue remains: the power scaling doesn't work. No difference at Idle vs Max. I will trouble shoot using the guide and shout if I need any help.

Otherwise, what an nice amp!

Mike

*EDIT* Now waiting for the cab, the WSG ET65 came Friday!


Top
 Profile

 Post subject: Re: Hello and a question
PostPosted: Mon Sep 26, 2016 7:47 pm
Offline
Friend
Friend

Joined: Wed Sep 14, 2016 4:14 pm
Posts: 24
And fixed it: I had the lead to the 10W 5W resistor coming from the Source, not the Drain. All is well. Very well, in fact :) I tried a 6L6 in there and that's going to stay. I might roll a few !2ax7's through, though...

*EDIT* er, I mean the Drain, not the Source :mrgreen:


Top
 Profile

 Post subject: Re: Hello and a question
PostPosted: Mon Sep 26, 2016 8:46 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7519
Location: Canada
I was about to suggest the wiring. I think you're pretty lucky the FET didnt blow!
A 6L6 totally rocks this amp!! But gets away from our low power style!
Glad you're liking the Tramp!

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

 Post subject: Re: Hello and a question
PostPosted: Mon Sep 26, 2016 10:16 pm
Offline
Friend
Friend

Joined: Wed Sep 14, 2016 4:14 pm
Posts: 24
Thanks, Stephen. It is much louder now, but with power scaling working it is somewhat mitigated. The power scaling is tricky, but it is really good. I played with it a bunch tonight and I can dial in really great tone at reasonable volume. Great stuff :)


Top
 Profile

 Post subject: Re: Hello and a question
PostPosted: Mon Sep 26, 2016 11:06 pm
Offline
Holy Ghost
Holy Ghost
User avatar

Joined: Sun Mar 13, 2005 4:10 pm
Posts: 7519
Location: Canada
The MV works very well too!

_________________
Stephen
Web: www.trinityamps.com. Facebook: facebook.com/trinityamps. Twitter: @trinityamps


Top
 Profile

 Post subject: Re: Hello and a question
PostPosted: Mon Sep 26, 2016 11:32 pm
Offline
Friend
Friend

Joined: Wed Sep 14, 2016 4:14 pm
Posts: 24
Yes! That's what I'm finding. They both have their place, but I'll tell you what: cranking that thing and making the speaker, the power tube and the preamp all work hard makes for some awesome tone. Find a place to crank it!


Top
 Profile

 Post subject: Re: Hello and a question
PostPosted: Sat Oct 15, 2016 7:19 pm
Offline
Friend
Friend

Joined: Wed Sep 14, 2016 4:14 pm
Posts: 24

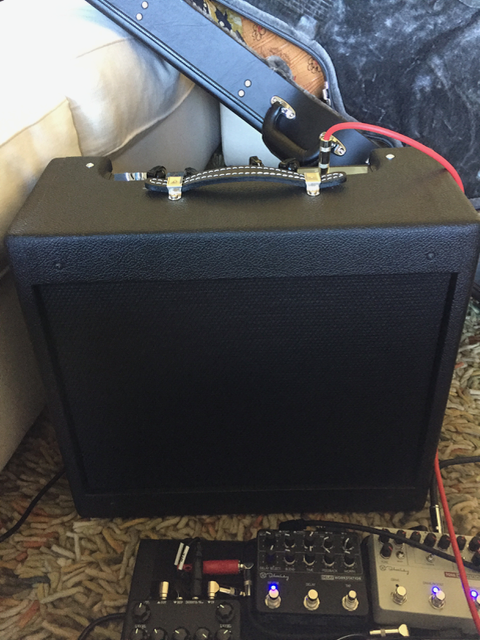

And all done! Cabinet here, sounds wonderful! ET65 really works for this configuration of this amp :)

Attachment:
IMG_0721.png [ 529.57 KiB | Viewed 12298 times ]


Top
 Profile

 Post subject: Re: Hello and a question
PostPosted: Wed Oct 19, 2016 3:55 pm
Offline
Friend
Friend

Joined: Wed Sep 14, 2016 4:14 pm
Posts: 24
So I've been looking at modding the amp to use an EL34 and I think I've found an error in the layout diagram. The graphic for the mod says to take the middle lugs of the switch out to PIN 8 of V2. This should be PIN 3, right? The schematic says pin 3 and that seems like the right thing.


Top
 Profile

 Post subject: Re: Hello and a question
PostPosted: Wed Oct 19, 2016 10:26 pm
Offline
Experienced
Experienced

Joined: Sat Sep 25, 2010 3:04 pm
Posts: 181
definitely pin 3.
pin 8 is for the bias resistor switch.
